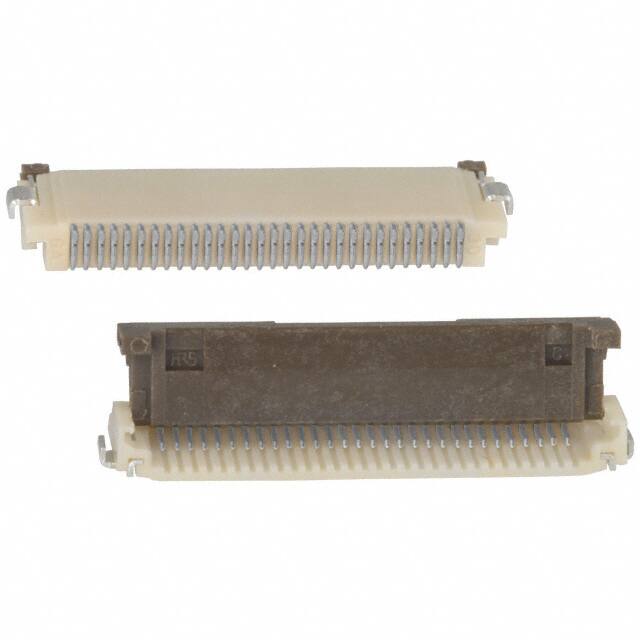

FH12S-30S-0.5SH(55)

Teknik Özellikler

Ffc Fcb Thickness

0.30mm

Material

Polyamide

Fabrika Tedarik Süresi

10 Weeks

Contact Resistance

50mOhm

Mating Cycles

20

Flammability Rating

UL94 V-0

Montaj

Surface Mount

Uzunluk

19.1mm

Total Number Of Contacts

30

Insulation Resistance

500MOhm

Mixed Contacts

NO

Pitch

0.020 0.50mm

Parça Durumu

Active

Mil Conformance

NO

Locking Feature

Flip Lock

Height Above Board

0.094 2.40mm

Terminal

Solder

Actuatorcolor

Brown

Voltage Rated Ac

50V

Çalışma Sıcaklığı

-40°C~85°C

Connector Type

FFC/FPC CONNECTOR

Kurşunsuz

Lead Free

Ambalaj

Tape & Reel (TR)

RoHS Durumu

RoHS Compliant

Sıra Sayısı

1

Cable End Type

Straight

Actuator Material

Polyphenylene Sulfide (PPS)

Lead Pitch

500μm

Current Rating Amps

0.5A

Depth

5.6mm

Contact Location

Bottom

Max Current Rating

400mA

Din Conformance

NO

Seri

FH12

Pozisyon Sayısı

30

Flat Flex Type

FFC, FPC

Max Voltage Rating Ac

50V

Housing Material

Polyamide (PA), Nylon

Housing Color

Beige

Material Flammability Rating

UL94 V-0
