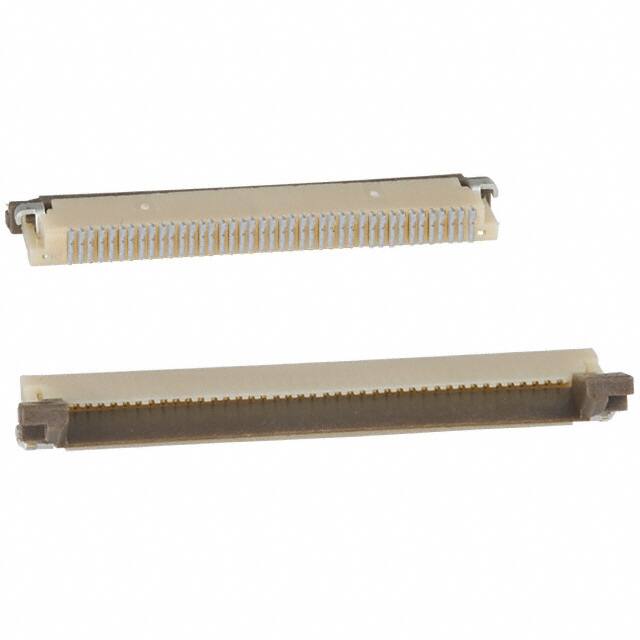

FH12A-40S-0.5SH

Teknik Özellikler

Nominal Gerilim

50V

Withdrawl Forcemin

ZIF N

Parça Durumu

Obsolete

Total Number Of Contacts

40

Mixed Contacts

NO

Insulation Resistance

500000000Ohm

Pitch

0.020 0.50mm

Reliability

COMMERCIAL

Flammability Rating

UL94 V-0

Mating Cycles

20

Montaj

Surface Mount

REACH Uyumluluk Kodu

unknown

Body Depth

0.22 inch

Ffc Fcb Thickness

0.30mm

Contact Plating

Lead, Tin

Contact Resistance

50mOhm

Insertion Forcemax

ZIF N

Connector Type

FFC/FPC CONNECTOR

Kurşunsuz

Contains Lead

Ambalaj

Tape & Reel (TR)

RoHS Durumu

Non-RoHS Compliant

Actuatorcolor

Brown

Çalışma Sıcaklığı

-40°C~85°C

Contact Gender

FEMALE

Height Above Board

0.079 2.00mm

Yükseklik

3.6mm

Terminal

Solder

Mil Conformance

NO

Locking Feature

Flip Lock

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.094 inch

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

Ul Flammability Code

94V-0

Din Conformance

NO

Mating Information

NO

Seri

FH12

Pozisyon Sayısı

40

Flat Flex Type

FFC, FPC

Housing Material

Polyamide (PA), Nylon
