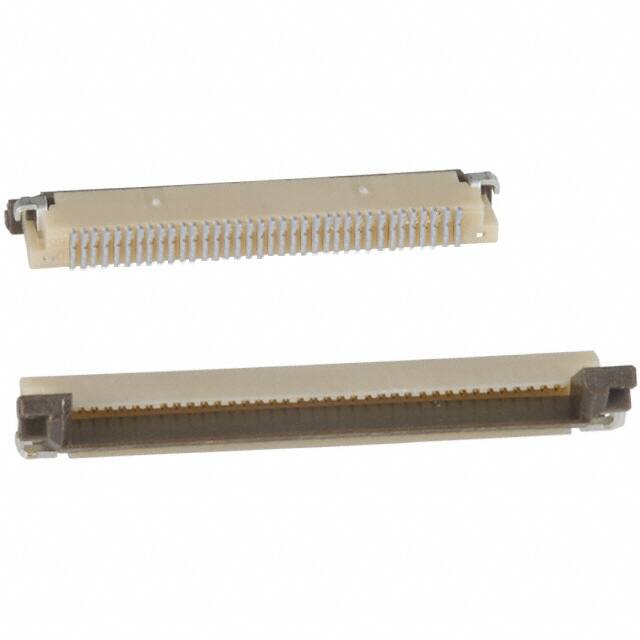

FH12A-36S-0.5SH(55)

Teknik Özellikler

Withdrawl Forcemin

ZIF N

Parça Durumu

Active

Total Number Of Contacts

36

Uzunluk

22.5mm

Pitch

0.020 0.50mm

Insulation Resistance

500000000Ohm

Mixed Contacts

NO

Reliability

COMMERCIAL

Flammability Rating

UL94 V-0

Mating Cycles

20

Montaj

Surface Mount

Ffc Fcb Thickness

0.30mm

Contact Resistance

50mOhm

Fabrika Tedarik Süresi

10 Weeks

Insertion Forcemax

ZIF N

Connector Type

FFC/FPC CONNECTOR

RoHS Durumu

RoHS Compliant

Plating Thickness

FLASH inch

Ambalaj

Tape & Reel (TR)

Kurşunsuz

Lead Free

Çalışma Sıcaklığı

-40°C~85°C

Actuatorcolor

Brown

Height Above Board

0.079 2.00mm

Terminal

Solder

Locking Feature

Flip Lock

Mil Conformance

NO

JESD-609 Kodu

e4

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.079 inch

Ul Flammability Code

94V-0

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

Flat Flex Type

FFC, FPC

Pozisyon Sayısı

36

Seri

FH12

Din Conformance

NO

Material Flammability Rating

UL94 V-0

Housing Color

Beige

Housing Material

Polyamide (PA), Nylon

Max Voltage Rating Ac

50V
