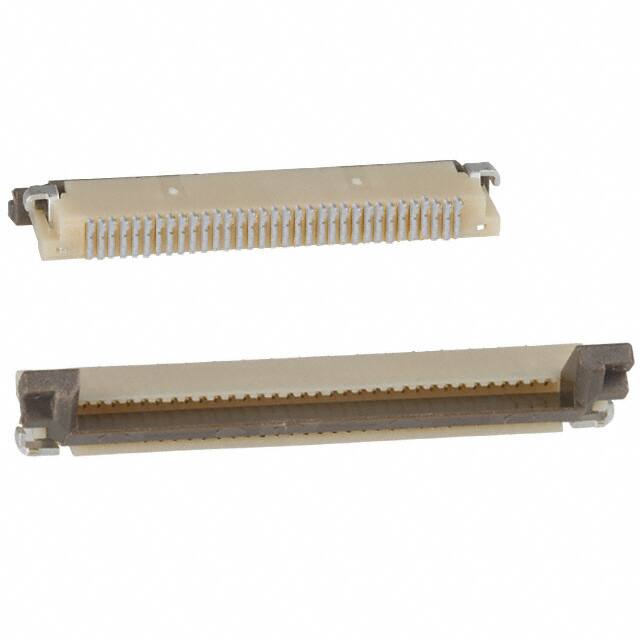

FH12A-33S-0.5SH(55)

Teknik Özellikler

Option

GENERAL PURPOSE

Contact Style

BELLOWED TYPE

Akım Değeri

500mA

Reference Standard

UL

Radyasyon Dayanımı

No

Özellikler

Zero Insertion Force (ZIF)

Kurşunsuz Kodu

yes

Number Of Pcb Rows

1

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Receptacle

Contact Materials

Phosphor Bronze

Orientation

Right Angle

Reach Svhc

No SVHC

Contact Finish

Gold

Lead Pitch

500μm

Current Rating Amps

0.5A

Depth

6.2mm

Cable End Type

Straight

Sıra Sayısı

1

Actuator Material

Polyphenylene Sulfide (PPS)

Contact Pattern

RECTANGULAR

Contact Location

Top

Max Current Rating

400mA

Max Voltage Rating Ac

50V

Housing Material

Polyamide (PA), Nylon

Housing Color

Beige

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Seri

FH12

Pozisyon Sayısı

33

Flat Flex Type

FFC, FPC

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

Ul Flammability Code

94V-0

Body Breadth

0.079 inch

Pcb Contact Pattern

RECTANGULAR

JESD-609 Kodu

e4

Mil Conformance

NO

Locking Feature

Flip Lock
