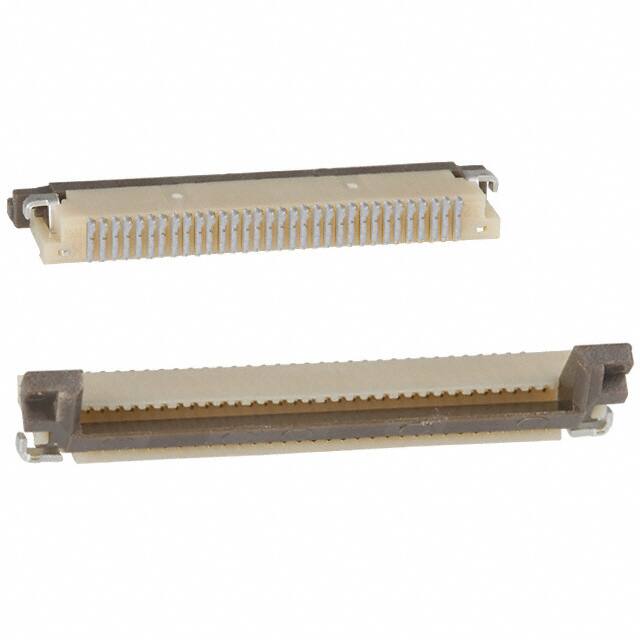

FH12A-32S-0.5SH(55)

Teknik Özellikler

Depth

6.2mm

Lead Pitch

500μm

Current Rating Amps

0.5A

Contact Pattern

RECTANGULAR

Cable End Type

Straight

Sıra Sayısı

1

Actuator Material

Polyphenylene Sulfide (PPS)

Max Current Rating

400mA

Contact Location

Top

Housing Color

Beige

Material Flammability Rating

UL94 V-0

Max Voltage Rating Ac

50V

Housing Material

Polyamide (PA), Nylon

Seri

FH12

Pozisyon Sayısı

32

Flat Flex Type

FFC, FPC

Din Conformance

NO

Ul Flammability Code

94V-0

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

JESD-609 Kodu

e4

Body Breadth

0.079 inch

Pcb Contact Pattern

RECTANGULAR

Contact Style

BELLOWED TYPE

Option

GENERAL PURPOSE

Akım Değeri

500mA

Reference Standard

UL

Radyasyon Dayanımı

No

Özellikler

Zero Insertion Force (ZIF)

Kurşunsuz Kodu

yes

Number Of Pcb Rows

1

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Receptacle

Reach Svhc

Unknown

Contact Finish

Gold

Contact Materials

Phosphor Bronze

Orientation

Right Angle

Contact Resistance

50mOhm

Fabrika Tedarik Süresi

10 Weeks
