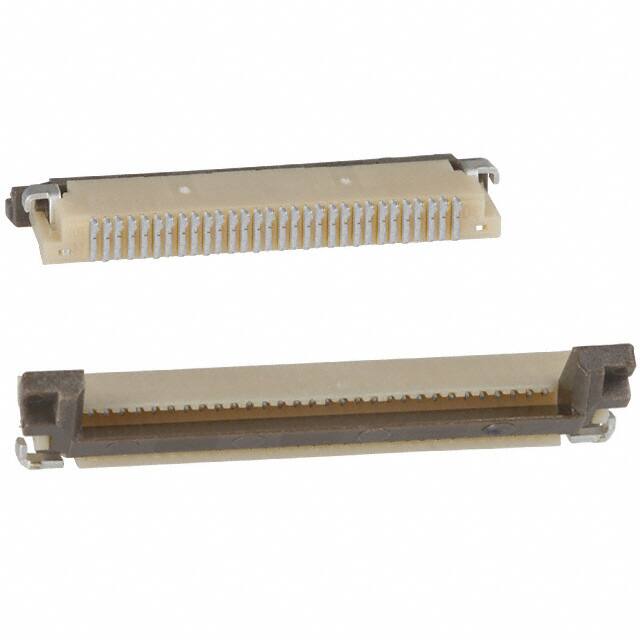

FH12A-30S-0.5SH(55)

Teknik Özellikler

Orientation

Right Angle

Contact Materials

Phosphor Bronze

Genişlik

19.1mm

Contact Finish

Gold

Reach Svhc

No SVHC

Gender

Receptacle

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Pcb Rows

1

Kurşunsuz Kodu

yes

Özellikler

Zero Insertion Force (ZIF)

Radyasyon Dayanımı

No

Reference Standard

UL

Akım Değeri

500mA

Renk

Beige, Brown

Option

GENERAL PURPOSE

Contact Style

BELLOWED TYPE

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.079 inch

JESD-609 Kodu

e4

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

Ul Flammability Code

94V-0

Din Conformance

NO

Flat Flex Type

FFC, FPC

Pozisyon Sayısı

30

Seri

FH12

Housing Material

Polyamide (PA), Nylon

Max Voltage Rating Ac

50V

Material Flammability Rating

UL94 V-0

Housing Color

Beige

Contact Location

Top

Max Current Rating

400mA

Actuator Material

Polyphenylene Sulfide (PPS)

Cable End Type

Straight

Sıra Sayısı

1

Contact Pattern

RECTANGULAR

Current Rating Amps

0.5A

Lead Pitch

500μm

Depth

6.2mm
