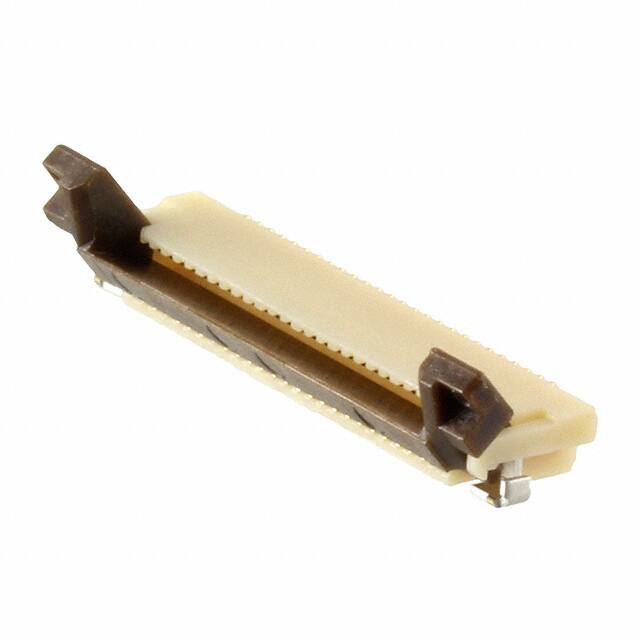

FH12A-26S-0.5SH(55)

Teknik Özellikler

Body Length Or Diameter

0.689 inch

Option

GENERAL PURPOSE

Contact Style

BELLOWED TYPE

Akım Değeri

500mA

Reference Standard

UL

Gender

Female

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Contact Materials

Phosphor Bronze

Orientation

Right Angle

Contact Finish

Gold

Reach Svhc

Unknown

Özellikler

Zero Insertion Force (ZIF)

Radyasyon Dayanımı

No

Number Of Pcb Rows

1

Kurşunsuz Kodu

yes

Contact Location

Top

Current Rating Amps

0.5A

Lead Pitch

500μm

Actuator Material

Polyphenylene Sulfide (PPS)

Sıra Sayısı

1

Cable End Type

Straight

Contact Pattern

RECTANGULAR

Filter Feature

NO

Montaj Tipi

Surface Mount, Right Angle

Ul Flammability Code

94V-0

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.079 inch

JESD-609 Kodu

e4

Housing Material

Polyamide (PA), Nylon

Material Flammability Rating

UL94 V-0

Housing Color

Beige

Din Conformance

NO

Seri

FH12

Pozisyon Sayısı

26

Flat Flex Type

FFC, FPC

Terminal

Solder

Height Above Board

0.079 2.00mm

Mil Conformance

NO

Locking Feature

Flip Lock
