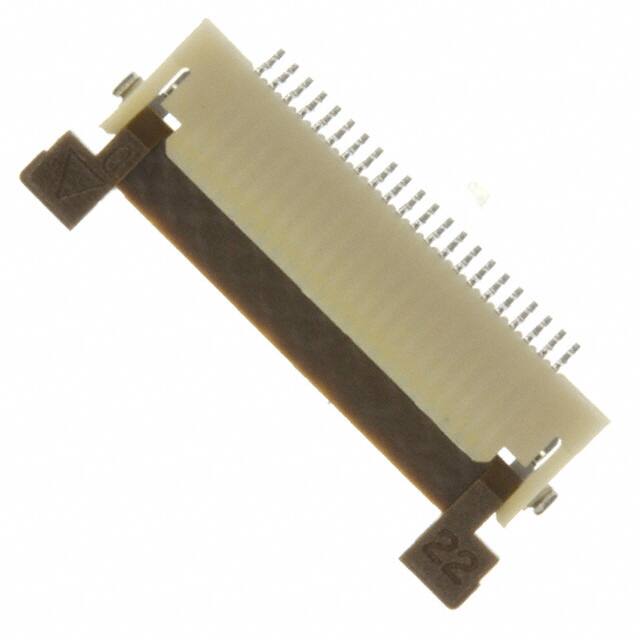

FH12A-22S-0.5SH(55)

Teknik Özellikler

Akım Değeri

500mA

Reference Standard

UL

Option

GENERAL PURPOSE

Contact Style

BELLOWED TYPE

Number Of Pcb Rows

1

Kurşunsuz Kodu

yes

Özellikler

Zero Insertion Force (ZIF)

Contact Materials

Phosphor Bronze

Orientation

Right Angle

Contact Finish

Gold

Gender

Female

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Actuator Material

Polyphenylene Sulfide (PPS)

Sıra Sayısı

1

Cable End Type

Straight

Contact Pattern

RECTANGULAR

Current Rating Amps

0.5A

Lead Pitch

500μm

Depth

6.2mm

Contact Location

Top

Max Current Rating

400mA

Din Conformance

NO

Seri

FH12

Pozisyon Sayısı

22

Flat Flex Type

FFC, FPC

Housing Material

Polyamide (PA), Nylon

Max Voltage Rating Ac

50V

Material Flammability Rating

UL94 V-0

Housing Color

Beige

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.079 inch

JESD-609 Kodu

e4

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

Ul Flammability Code

94V-0

Mil Conformance

NO

Locking Feature

Flip Lock

Height Above Board

0.079 2.00mm

Terminal

Solder
