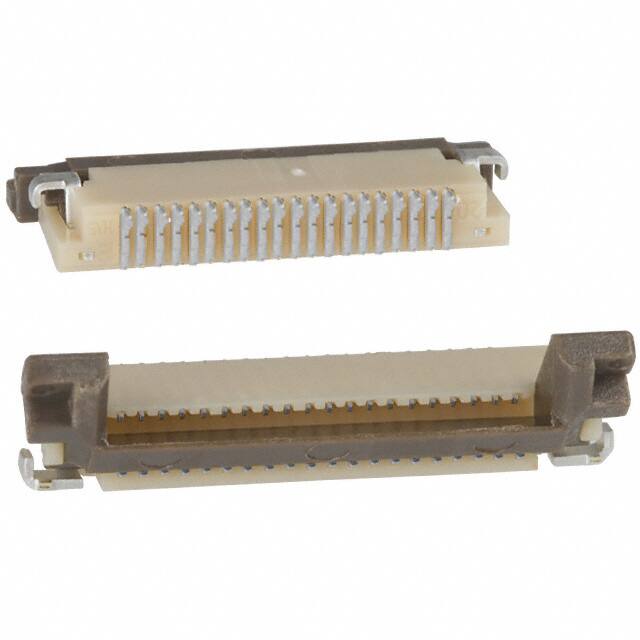

FH12A-20S-0.5SH(55)

Teknik Özellikler

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Female

Orientation

Right Angle

Contact Materials

Phosphor Bronze

Reach Svhc

No SVHC

Genişlik

14.1mm

Contact Finish

Gold

Radyasyon Dayanımı

No

Özellikler

Zero Insertion Force (ZIF)

Kurşunsuz Kodu

yes

Number Of Pcb Rows

1

Additional Feature

TAPE AND REEL PACKAGING

Renk

Beige, Brown

Option

GENERAL PURPOSE

Contact Style

BELLOWED TYPE

Reference Standard

UL

Akım Değeri

500mA

Filter Feature

NO

Montaj Tipi

Surface Mount, Right Angle

Ul Flammability Code

94V-0

Body Breadth

0.079 inch

Pcb Contact Pattern

RECTANGULAR

JESD-609 Kodu

e4

Max Voltage Rating Ac

50V

Housing Material

Polyamide (PA), Nylon

Housing Color

Beige

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Flat Flex Type

FFC, FPC

Seri

FH12

Pozisyon Sayısı

20

Contact Location

Top

Max Current Rating

400mA

Lead Pitch

500μm

Current Rating Amps

0.5A

Depth

6.2mm

Cable End Type

Straight

Sıra Sayısı

1

Actuator Material

Polyphenylene Sulfide (PPS)
