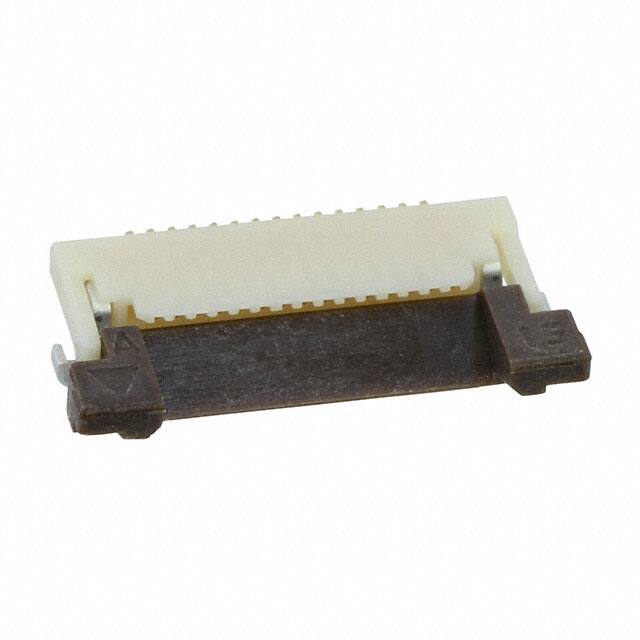

FH12A-15S-0.5SH(55)

Teknik Özellikler

Contact Pattern

RECTANGULAR

Insertion Forcemax

ZIF N

Housing Material

Polyamide (PA), Nylon

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

0.020 0.50mm

Kurşunsuz

Lead Free

Ul Flammability Code

94V-0

RoHS Durumu

RoHS Compliant

Özellikler

Zero Insertion Force (ZIF)

Body Length Or Diameter

0.472 inch

Iec Conformance

NO

Flat Flex Type

FFC, FPC

Fabrika Tedarik Süresi

10 Weeks

Insulation Resistance

500MOhm

Akım Değeri

500mA

Mil Conformance

NO

Actuator Material

Polyphenylene Sulfide (PPS)

Total Number Of Contacts

15

Seri

FH12

Montaj Tipi

Surface Mount, Right Angle

Contact Finish

Gold

JESD-609 Kodu

e4

Number Of Pcb Rows

1

Din Conformance

NO

Connector Type

FFC/FPC CONNECTOR

Pcb Contact Pattern

RECTANGULAR

Kurşunsuz Kodu

yes

Contact Materials

Phosphor Bronze

Mixed Contacts

NO

Montaj

Surface Mount

Flammability Rating

UL94 V-0

Orientation

Right Angle

Lead Pitch

500μm

Terminal

Solder

Option

GENERAL PURPOSE

Housing Color

Beige

Body Breadth

0.079 inch

Ffc Fcb Thickness

0.30mm

Sıra Sayısı

1
