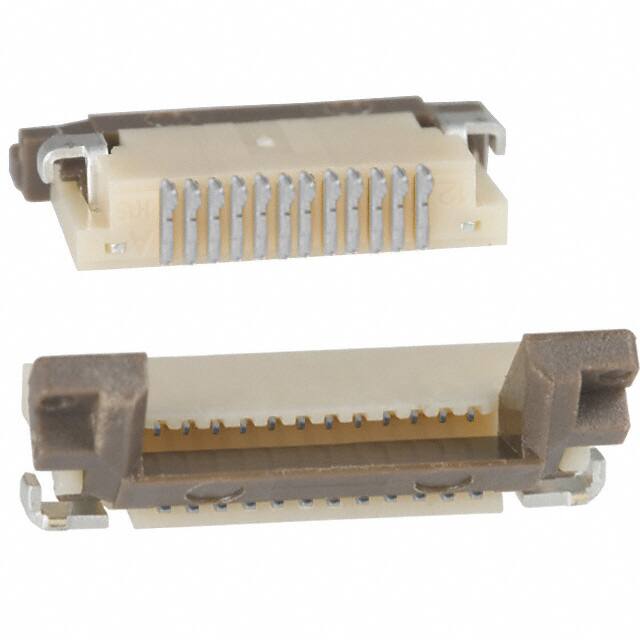

FH12A-12S-0.5SH(55)

Teknik Özellikler

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Polyamide (PA), Nylon

Pitch

0.020 0.50mm

Contact Pattern

RECTANGULAR

Depth

6.2mm

Insertion Forcemax

ZIF N

Flat Flex Type

FFC, FPC

Fabrika Tedarik Süresi

10 Weeks

Max Current Rating

400mA

Ul Flammability Code

94V-0

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Iec Conformance

NO

Özellikler

Zero Insertion Force (ZIF)

Pcb Contact Pattern

RECTANGULAR

Connector Type

FFC/FPC CONNECTOR

Number Of Pcb Rows

1

JESD-609 Kodu

e4

Din Conformance

NO

Kurşunsuz Kodu

yes

Insulation Resistance

500000000Ohm

Akım Değeri

500mA

Montaj Tipi

Surface Mount, Right Angle

Contact Finish

Gold

Mil Conformance

NO

Actuator Material

Polyphenylene Sulfide (PPS)

Total Number Of Contacts

12

Seri

FH12

Orientation

Right Angle

Lead Pitch

500μm

Flammability Rating

UL94 V-0

Terminal

Solder

Contact Materials

Phosphor Bronze

Montaj

Surface Mount

Max Voltage Rating Ac

50V

Mixed Contacts

NO

Ffc Fcb Thickness

0.30mm

Sıra Sayısı

1

Body Breadth

0.079 inch
