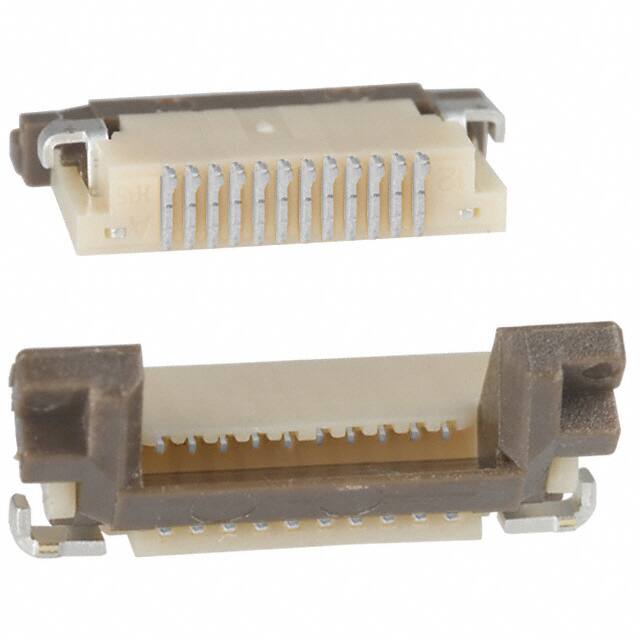

FH12A-10S-0.5SH(55)

Teknik Özellikler

Fabrika Tedarik Süresi

10 Weeks

Max Current Rating

400mA

Flat Flex Type

FFC, FPC

Özellikler

Zero Insertion Force (ZIF)

Iec Conformance

NO

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Ul Flammability Code

94V-0

Pitch

0.020 0.50mm

Housing Material

Polyamide (PA), Nylon

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Depth

6.2mm

Insertion Forcemax

ZIF N

Contact Pattern

RECTANGULAR

Terminal

Solder

Flammability Rating

UL94 V-0

Orientation

Right Angle

Lead Pitch

500μm

Max Voltage Rating Ac

50V

Mixed Contacts

NO

Montaj

Surface Mount

Contact Materials

Phosphor Bronze

Kurşunsuz Kodu

yes

Din Conformance

NO

Number Of Pcb Rows

1

JESD-609 Kodu

e4

Pcb Contact Pattern

RECTANGULAR

Connector Type

FFC/FPC CONNECTOR

Seri

FH12

Mil Conformance

NO

Actuator Material

Polyphenylene Sulfide (PPS)

Total Number Of Contacts

10

Contact Finish

Gold

Montaj Tipi

Surface Mount, Right Angle

Akım Değeri

500mA

Insulation Resistance

500000000Ohm

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Plating Thickness

FLASH inch
