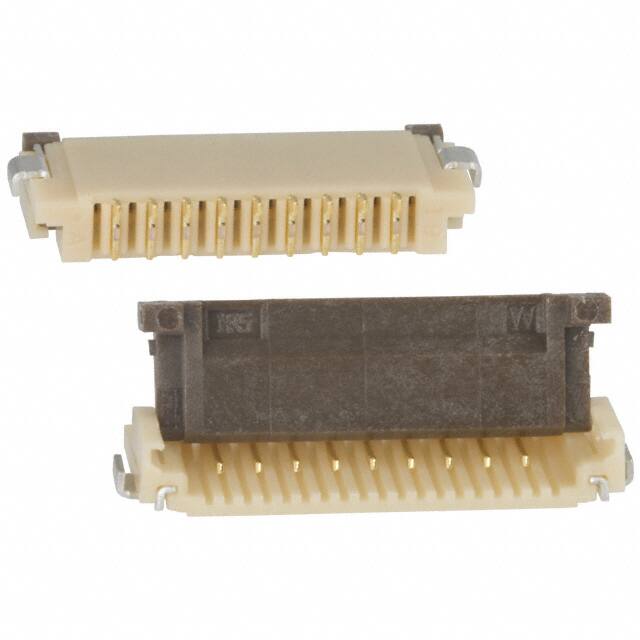

FH12-9S-1SH(55)

Teknik Özellikler

Height Above Board

0.079 2.00mm

Reach Svhc

No SVHC

Actuatorcolor

Brown

Current Rating Amps

0.5A

Mating Cycles

20

Locking Feature

Flip Lock

Reference Standard

UL

Contact Location

Bottom

Contact Style

COMPRESSION

Pozisyon Sayısı

9

Filter Feature

NO

Contact Resistance

50mOhm

Gender

Receptacle

Ambalaj

Tape & Reel (TR)

Çalışma Sıcaklığı

-40°C~85°C

Option

GENERAL PURPOSE

Housing Color

Beige

Ffc Fcb Thickness

0.30mm

Sıra Sayısı

1

Withdrawl Forcemin

ZIF N

Cable End Type

Straight

Uzunluk

13.6mm

Material Flammability Rating

UL94 V-0

Seri

FH12

Actuator Material

Polyphenylene Sulfide (PPS)

Total Number Of Contacts

9

Contact Finish

Gold

Montaj Tipi

Surface Mount, Right Angle

Insulation Resistance

500000000Ohm

Akım Değeri

500mA

Kurşunsuz Kodu

yes

JESD-609 Kodu

e4

Number Of Pcb Rows

1

Connector Type

FFC/FPC CONNECTOR

Pcb Contact Pattern

RECTANGULAR

Mixed Contacts

NO

Max Voltage Rating Ac

50V

Montaj

Surface Mount

Contact Materials

Phosphor Bronze

Terminal

Solder
