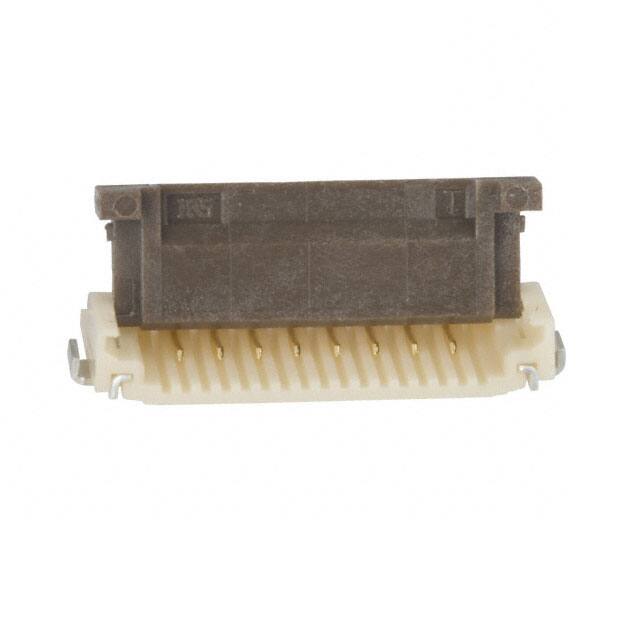

FH12-8S-1SH(55)

Teknik Özellikler

Option

GENERAL PURPOSE

Housing Color

Beige

Sıra Sayısı

1

Ffc Fcb Thickness

0.30mm

Uzunluk

12.6mm

Cable End Type

Straight

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Height Above Board

0.079 2.00mm

Reach Svhc

No SVHC

Actuatorcolor

Brown

Current Rating Amps

0.5A

Mating Cycles

20

Locking Feature

Flip Lock

Contact Location

Bottom

Pozisyon Sayısı

8

Filter Feature

NO

Contact Resistance

50mOhm

Gender

Receptacle

Ambalaj

Tape & Reel (TR)

Çalışma Sıcaklığı

-40°C~85°C

Depth

5.6mm

Pitch

0.039 1.00mm

Housing Material

Polyamide (PA), Nylon

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Yayın Yılı

2008

Iec Conformance

NO

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Ul Flammability Code

94V-0

Max Current Rating

400mA

Fabrika Tedarik Süresi

10 Weeks

Flat Flex Type

FFC, FPC

Seri

FH12

Mil Conformance

NO

Actuator Material

Polyphenylene Sulfide (PPS)

Total Number Of Contacts

8

Contact Finish

Gold
