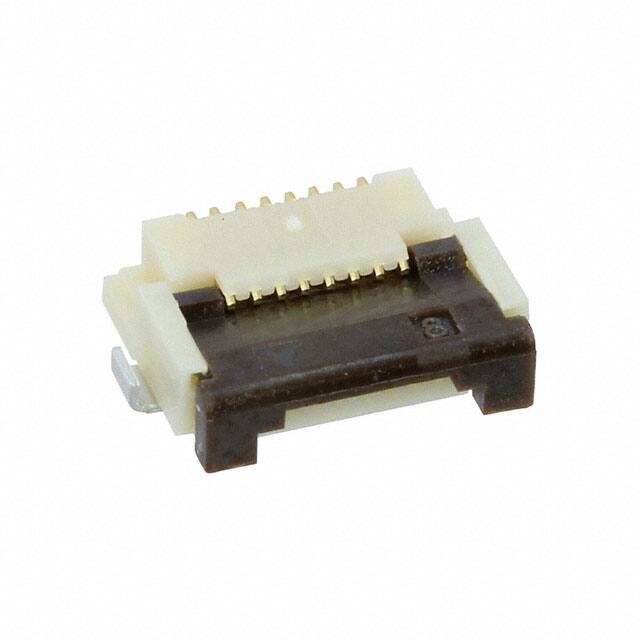

FH12-8S-0.5SH(55)

Teknik Özellikler

Insulation Resistance

500MOhm

Akım Değeri

500mA

Contact Finish

Gold

Montaj Tipi

Surface Mount, Right Angle

Seri

FH12

Mil Conformance

NO

Actuator Material

Polyphenylene Sulfide (PPS)

Total Number Of Contacts

8

Connector Type

FFC/FPC CONNECTOR

Din Conformance

NO

JESD-609 Kodu

e4

Wirecable Type

Flat Flex

Kurşunsuz Kodu

yes

Contact Materials

Phosphor Bronze

Montaj

Surface Mount

Max Voltage Rating Ac

50V

Mixed Contacts

NO

Orientation

Right Angle

Flammability Rating

UL94 V-0

Terminal

Solder

Depth

5.6mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Housing Material

Polyamide (PA), Nylon

Pitch

0.020 0.50mm

RoHS Durumu

RoHS Compliant

Ul Flammability Code

94V-0

Kurşunsuz

Lead Free

Iec Conformance

NO

Özellikler

Zero Insertion Force (ZIF)

Fabrika Tedarik Süresi

12 Weeks

Max Current Rating

400mA

Flat Flex Type

FFC, FPC

ECCN Kodu

EAR99

Actuatorcolor

Brown

Mating Cycles

20

Current Rating Amps

0.5A

Locking Feature

Flip Lock

Reach Svhc

No SVHC

Height Above Board

0.079 2.00mm
