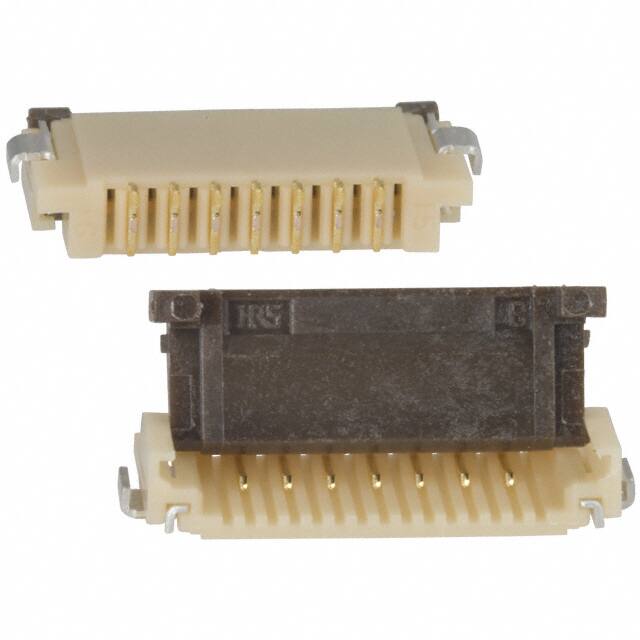

FH12-7S-1SH(55)

Teknik Özellikler

Mating Cycles

20

Current Rating Amps

0.5A

Actuatorcolor

Brown

Locking Feature

Flip Lock

Height Above Board

0.079 2.00mm

Reach Svhc

No SVHC

Contact Location

Bottom

Filter Feature

NO

Pozisyon Sayısı

7

Çalışma Sıcaklığı

-40°C~85°C

Gender

Receptacle

Ambalaj

Tape & Reel (TR)

Option

GENERAL PURPOSE

Housing Color

Beige

Ffc Fcb Thickness

0.30mm

Sıra Sayısı

1

Cable End Type

Straight

Material Flammability Rating

UL94 V-0

Nominal Gerilim

50V

Akım Değeri

500mA

Seri

FH12

Mil Conformance

NO

Actuator Material

Polyphenylene Sulfide (PPS)

Total Number Of Contacts

7

Contact Finish

Gold

Montaj Tipi

Surface Mount, Right Angle

Din Conformance

NO

JESD-609 Kodu

e4

Connector Type

FFC/FPC CONNECTOR

Kurşunsuz Kodu

yes

Contact Materials

Phosphor Bronze

Mixed Contacts

NO

Montaj

Surface Mount

Flammability Rating

UL94 V-0

Lead Pitch

1mm

Orientation

Right Angle

Terminal

Solder

Housing Material

Polyamide (PA), Nylon

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active
