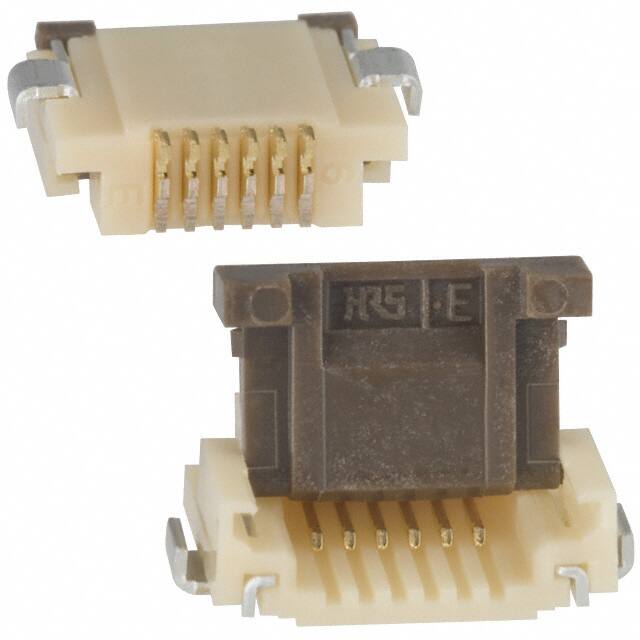

FH12-6S-0.5SH(1)(98)

Teknik Özellikler

Body Breadth

0.079 inch

Housing Color

Beige

Contact Pattern

RECTANGULAR

Pitch

0.020 0.50mm

Ffc Fcb Thickness

0.30mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Parça Durumu

Active

Housing Material

Polyamide (PA), Nylon

Body Length Or Diameter

0.28 inch

Özellikler

Zero Insertion Force (ZIF)

RoHS Durumu

RoHS Compliant

Cable End Type

Straight

REACH Uyumluluk Kodu

unknown

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

10 Weeks

Flat Flex Type

FFC, FPC

Contact Finish

Gold

Montaj Tipi

Surface Mount, Right Angle

Seri

FH12

Total Number Of Contacts

6

Height Above Board

0.079 2.00mm

Actuator Material

Polyphenylene Sulfide (PPS)

Nominal Gerilim

50V

Akım Değeri

500mA

Insulation Resistance

500MOhm

Current Rating Amps

0.5A

Mating Cycles

20

Actuatorcolor

Brown

Locking Feature

Flip Lock

Reliability

COMMERCIAL

Wirecable Type

Flat Flex

Reference Standard

UL

Connector Type

FFC/FPC CONNECTOR

Pcb Contact Pattern

RECTANGULAR

Number Of Pcb Rows

1

Pozisyon Sayısı

6

Montaj

Surface Mount

Contact Style

BELLOWED TYPE

Contact Resistance

50mOhm
