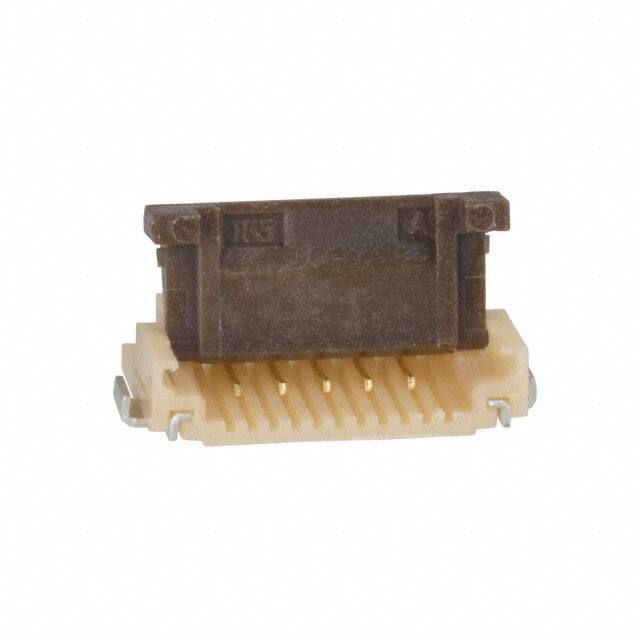

FH12-5S-1SH(55)

Teknik Özellikler

Locking Feature

Flip Lock

Actuatorcolor

Brown

Current Rating Amps

0.5A

Mating Cycles

20

Height Above Board

0.079 2.00mm

Contact Location

Bottom

Reliability

COMMERCIAL

Reference Standard

UL

Contact Resistance

50mOhm

Filter Feature

NO

Pozisyon Sayısı

5

Contact Style

BELLOWED TYPE

Çalışma Sıcaklığı

-40°C~85°C

Ambalaj

Tape & Reel (TR)

Gender

Female

Body Breadth

0.079 inch

Housing Color

Beige

Option

GENERAL PURPOSE

Sıra Sayısı

1

Ffc Fcb Thickness

0.30mm

Uzunluk

9.6mm

Cable End Type

Straight

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Akım Değeri

500mA

Montaj Tipi

Surface Mount, Right Angle

Contact Finish

Gold

Mil Conformance

NO

Actuator Material

Polyphenylene Sulfide (PPS)

Total Number Of Contacts

5

Seri

FH12

Connector Type

FFC/FPC CONNECTOR

Pcb Contact Pattern

RECTANGULAR

JESD-609 Kodu

e4

Number Of Pcb Rows

1

Din Conformance

NO

Kurşunsuz Kodu

yes

Contact Materials

Phosphor Bronze

Montaj

Surface Mount

Max Voltage Rating Ac

50V
