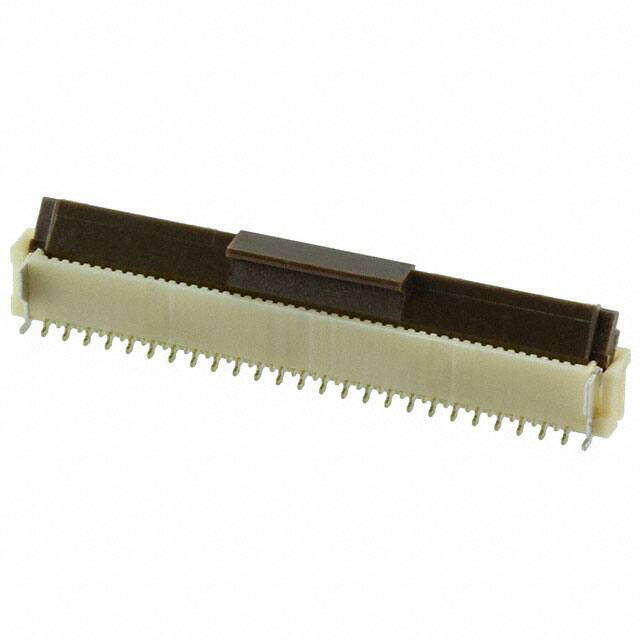

FH12-49S-0.5SVA(54)

Teknik Özellikler

Seri

FH12

Total Number Of Contacts

49

Height Above Board

0.142 3.60mm

Actuator Material

Polyphenylene Sulfide (PPS)

Contact Finish

Gold

Montaj Tipi

Surface Mount

Current Rating Amps

0.5A

Locking Feature

Flip Lock

Nominal Gerilim

50V

Akım Değeri

500mA

Reference Standard

UL

Number Of Pcb Rows

2

Pcb Contact Pattern

STAGGERED

Connector Type

FFC/FPC CONNECTOR

Mixed Contacts

NO

Pozisyon Sayısı

49

Montaj

Surface Mount

Contact Style

BELLOWED TYPE

Filter Feature

NO

Contact Materials

Phosphor Bronze

Terminal

Solder

Body Depth

0.142 inch

Ambalaj

Tape & Reel (TR)

Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-40°C~85°C

Pcb Contact Row Spacing

0.118 mm

Option

GENERAL PURPOSE

Body Breadth

0.15 inch

Contact Pattern

RECTANGULAR

Pitch

0.020 0.50mm

Housing Material

Polyamide (PA), Nylon

Sıra Sayısı

1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ffc Fcb Thickness

0.30mm

Parça Durumu

Active

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Body Length Or Diameter

1.1 inch

Cable End Type

Straight

REACH Uyumluluk Kodu

unknown

Contact Gender

FEMALE
