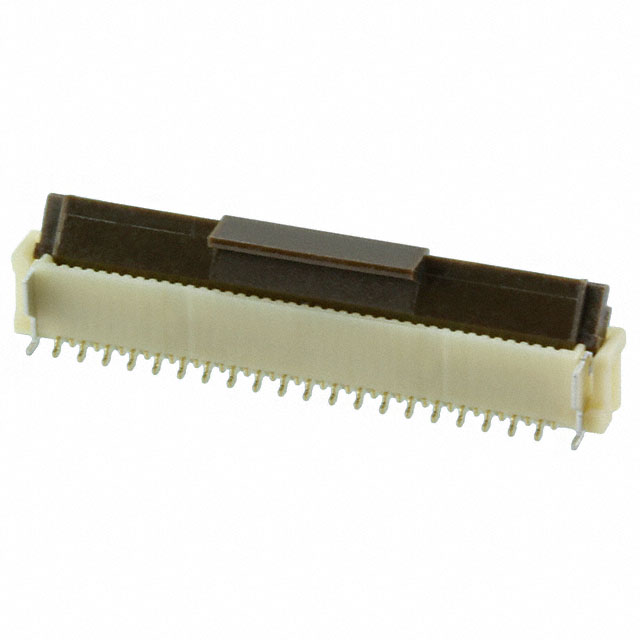

FH12-40S-0.5SVA(54)

Teknik Özellikler

Sıra Sayısı

1

Ffc Fcb Thickness

0.30mm

Voltage Rated Ac

50V

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0

Cable End Type

Straight

Material

Polyamide

Genişlik

23.4mm

Reference Standard

UL

Current Rating Amps

0.5A

Locking Feature

Flip Lock

Height Above Board

0.142 3.60mm

Reach Svhc

Unknown

Çalışma Sıcaklığı

-40°C~85°C

Gender

Receptacle

Ambalaj

Tape & Reel (TR)

Filter Feature

NO

Contact Resistance

50mOhm

Contact Style

BELLOWED TYPE

Pozisyon Sayısı

40

Housing Material

Polyamide (PA), Nylon

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Pitch

0.020 0.50mm

Contact Pattern

RECTANGULAR

Yükseklik

5.7mm

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

10 Weeks

Flat Flex Type

FFC, FPC

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Ul Flammability Code

94V-0

Number Of Conductors

ONE

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Number Of Pcb Rows

2

Pcb Contact Pattern

STAGGERED

Connector Type

FFC/FPC CONNECTOR

Akım Değeri

500mA

Insulation Resistance

500MOhm

Seri

FH12
