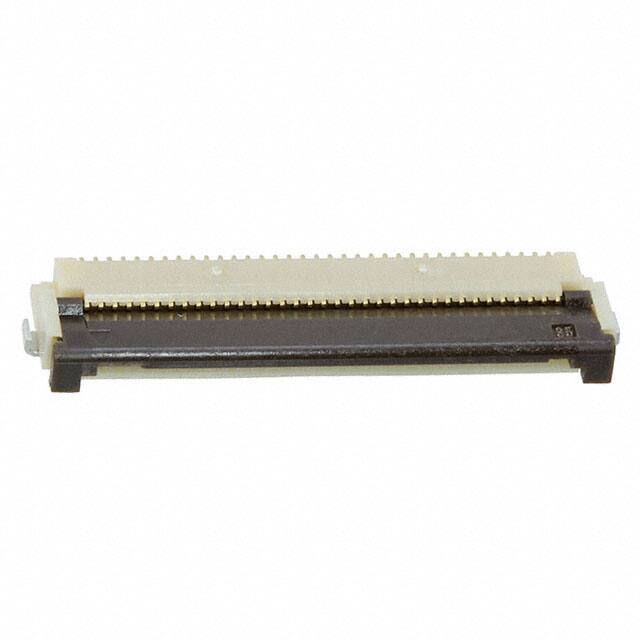

FH12-35S-0.5SH(55)

Teknik Özellikler

Montaj

Surface Mount

Mixed Contacts

NO

Contact Materials

Phosphor Bronze

Terminal

Solder

Flammability Rating

UL94 V-0

Montaj Tipi

Surface Mount, Right Angle

Contact Finish

Gold

Total Number Of Contacts

35

Actuator Material

Polyphenylene Sulfide (PPS)

Seri

FH12

Insulation Resistance

500MOhm

Akım Değeri

500mA

Nominal Gerilim

50V

Kurşunsuz Kodu

yes

Wirecable Type

Flat Flex

Connector Type

FFC/FPC CONNECTOR

Pcb Contact Pattern

RECTANGULAR

JESD-609 Kodu

e4

Number Of Pcb Rows

1

Body Length Or Diameter

0.85 inch

Özellikler

Zero Insertion Force (ZIF)

Ul Flammability Code

94V-0

Number Of Conductors

ONE

RoHS Durumu

RoHS Compliant

REACH Uyumluluk Kodu

unknown

Flat Flex Type

FFC, FPC

Fabrika Tedarik Süresi

10 Weeks

ECCN Kodu

EAR99

Insertion Forcemax

ZIF N

Contact Pattern

RECTANGULAR

Pitch

0.020 0.50mm

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Polyamide (PA), Nylon

Contact Style

COMPRESSION

Pozisyon Sayısı

35

Contact Resistance

50mOhm

Filter Feature

NO

Ambalaj

Tape & Reel (TR)

Body Depth

0.22 inch
