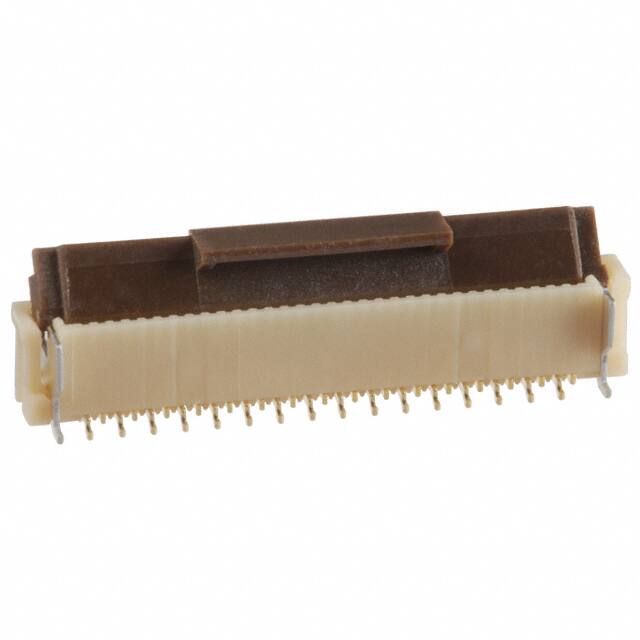

FH12-32S-0.5SV(55)

Teknik Özellikler

ECCN Kodu

EAR99

Flat Flex Type

FFC, FPC

Max Current Rating

400mA

Kurşunsuz

Lead Free

Ul Flammability Code

94V-0

RoHS Durumu

RoHS Compliant

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Iec Conformance

NO

Housing Material

Polyamide (PA), Nylon

Parça Durumu

Obsolete

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

0.020 0.50mm

Contact Pattern

RECTANGULAR

Insertion Forcemax

ZIF N

Flammability Rating

UL94 V-0

Lead Pitch

500μm

Terminal

Solder

Contact Materials

Phosphor Bronze

Max Voltage Rating Ac

50V

Mixed Contacts

NO

Montaj

Surface Mount

Number Of Pcb Rows

1

JESD-609 Kodu

e4

Din Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Connector Type

FFC/FPC CONNECTOR

Kurşunsuz Kodu

yes

Wirecable Type

Straight

Insulation Resistance

500000000Ohm

Akım Değeri

500mA

Mil Conformance

NO

Actuator Material

Polyphenylene Sulfide (PPS)

Total Number Of Contacts

32

Seri

FH12

Montaj Tipi

Surface Mount

Contact Finish

Gold

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Withdrawl Forcemin

ZIF N

Uzunluk

19.4mm
