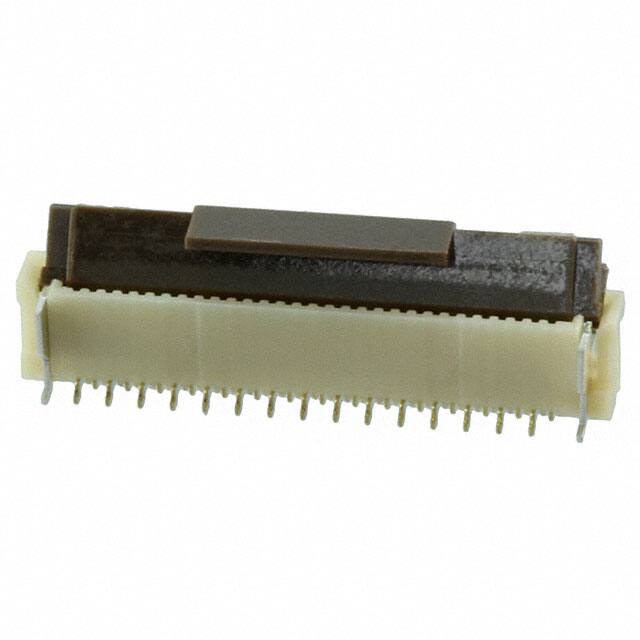

FH12-30S-0.5SVA(54)

Teknik Özellikler

Cable End Type

Straight

Material Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE

Ffc Fcb Thickness

0.30mm

Sıra Sayısı

1

Voltage Rated Ac

50V

Contact Resistance

50mOhm

Filter Feature

NO

Contact Style

BELLOWED TYPE

Pozisyon Sayısı

30

Çalışma Sıcaklığı

-40°C~85°C

Ambalaj

Tape & Reel (TR)

Gender

Receptacle

HTS Kodu

8536.69.40.40

Locking Feature

Flip Lock

Current Rating Amps

0.5A

Reach Svhc

Unknown

Height Above Board

0.142 3.60mm

Material

Polyamide

Reference Standard

UL

Genişlik

18.4mm

Ul Flammability Code

94V-0

Number Of Conductors

ONE

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Body Length Or Diameter

0.724 inch

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Flat Flex Type

FFC, FPC

Fabrika Tedarik Süresi

10 Weeks

ECCN Kodu

EAR99

Contact Pattern

RECTANGULAR

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Polyamide (PA), Nylon

Pitch

0.020 0.50mm

Contact Materials

Phosphor Bronze

Montaj

Surface Mount

Mixed Contacts

NO

Flammability Rating

UL94 V-0

Terminal

Solder
