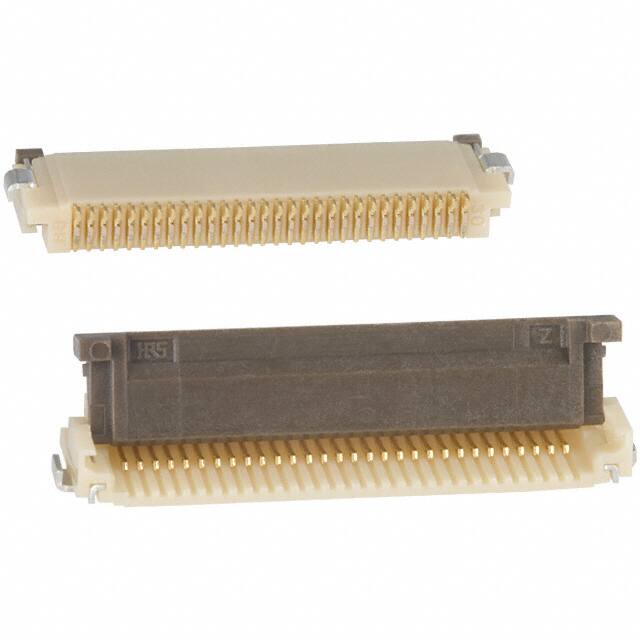

FH12-30S-0.5SH

Teknik Özellikler

Contact Pattern

RECTANGULAR

Insertion Forcemax

ZIF N

Housing Material

Polyamide (PA), Nylon

Parça Durumu

Obsolete

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

0.020 0.50mm

REACH Uyumluluk Kodu

unknown

Kurşunsuz

Contains Lead

Ul Flammability Code

94V-0

RoHS Durumu

Non-RoHS Compliant

Özellikler

Zero Insertion Force (ZIF)

Iec Conformance

NO

Body Length Or Diameter

0.752 inch

ECCN Kodu

EAR99

Flat Flex Type

FFC, FPC

Insulation Resistance

500000000Ohm

Akım Değeri

500mA

Nominal Gerilim

50V

Total Number Of Contacts

30

Actuator Material

Polyphenylene Sulfide (PPS)

Mil Conformance

NO

Seri

FH12

Montaj Tipi

Surface Mount, Right Angle

Contact Finish

Tin-Lead

Number Of Pcb Rows

1

Din Conformance

NO

Connector Type

FFC/FPC CONNECTOR

Pcb Contact Pattern

RECTANGULAR

Contact Materials

Phosphor Bronze

Mixed Contacts

NO

Montaj

Surface Mount

Flammability Rating

UL94 V-0

Lead Pitch

500μm

Terminal

Solder

Option

GENERAL PURPOSE

Body Breadth

0.079 inch

Housing Color

Beige

Ffc Fcb Thickness

0.30mm

Sıra Sayısı

1

Cable End Type

Straight
