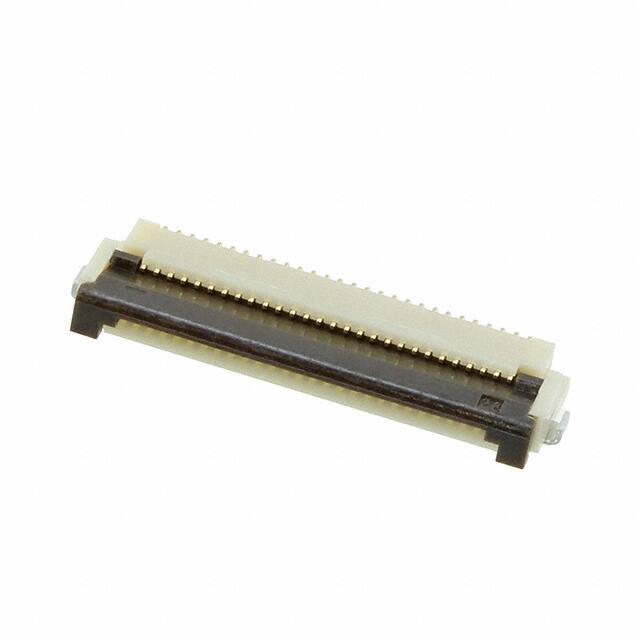

FH12-28S-0.5SH(55)

Teknik Özellikler

Fabrika Tedarik Süresi

12 Weeks

Max Current Rating

400mA

Flat Flex Type

FFC, FPC

Iec Conformance

NO

Özellikler

Zero Insertion Force (ZIF)

RoHS Durumu

RoHS Compliant

Ul Flammability Code

94V-0

Kurşunsuz

Lead Free

Pitch

0.020 0.50mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Housing Material

Polyamide (PA), Nylon

Depth

5.6mm

Contact Pattern

RECTANGULAR

Terminal

Solder

Orientation

Right Angle

Lead Pitch

500μm

Flammability Rating

UL94 V-0

Montaj

Surface Mount

Mixed Contacts

NO

Max Voltage Rating Ac

50V

Contact Materials

Phosphor Bronze

Kurşunsuz Kodu

yes

Pcb Contact Pattern

RECTANGULAR

Connector Type

FFC/FPC CONNECTOR

Din Conformance

NO

Number Of Pcb Rows

1

JESD-609 Kodu

e4

Contact Finish

Gold

Montaj Tipi

Surface Mount, Right Angle

Seri

FH12

Total Number Of Contacts

28

Mil Conformance

NO

Actuator Material

Polyphenylene Sulfide (PPS)

Insulation Resistance

500MOhm

Akım Değeri

500mA

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Cable End Type

Straight

Uzunluk

18.1mm
