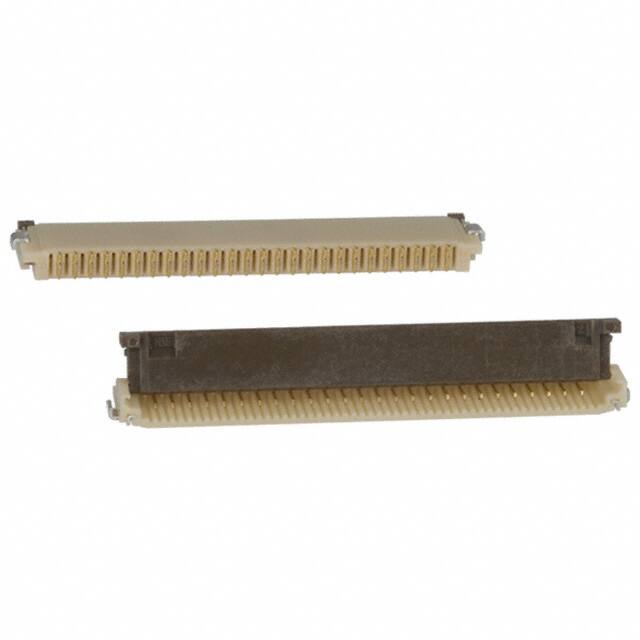

FH12-26S-1SH(55)

Teknik Özellikler

Çalışma Sıcaklığı

-40°C~85°C

Gender

Receptacle

Ambalaj

Tape & Reel (TR)

Filter Feature

NO

Contact Resistance

50mOhm

Pozisyon Sayısı

26

Contact Location

Bottom

Manufacturer Package Identifier

FH12-26S-1SH(55)

Actuatorcolor

Brown

Mating Cycles

20

Current Rating Amps

0.5A

Locking Feature

Flip Lock

Height Above Board

0.079 2.00mm

Reach Svhc

No SVHC

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Cable End Type

Straight

Uzunluk

30.6mm

Ffc Fcb Thickness

0.30mm

Sıra Sayısı

1

Option

GENERAL PURPOSE

Housing Color

Beige

Flammability Rating

UL94 V-0

Lead Pitch

1mm

Orientation

Right Angle

Terminal

Solder

Contact Materials

Phosphor Bronze

Mixed Contacts

NO

Max Voltage Rating Ac

50V

Montaj

Surface Mount

Din Conformance

NO

JESD-609 Kodu

e4

Connector Type

FFC/FPC CONNECTOR

Kurşunsuz Kodu

yes

Akım Değeri

500mA

Seri

FH12

Mil Conformance

NO

Actuator Material

Polyphenylene Sulfide (PPS)

Total Number Of Contacts

26

Contact Finish

Gold
