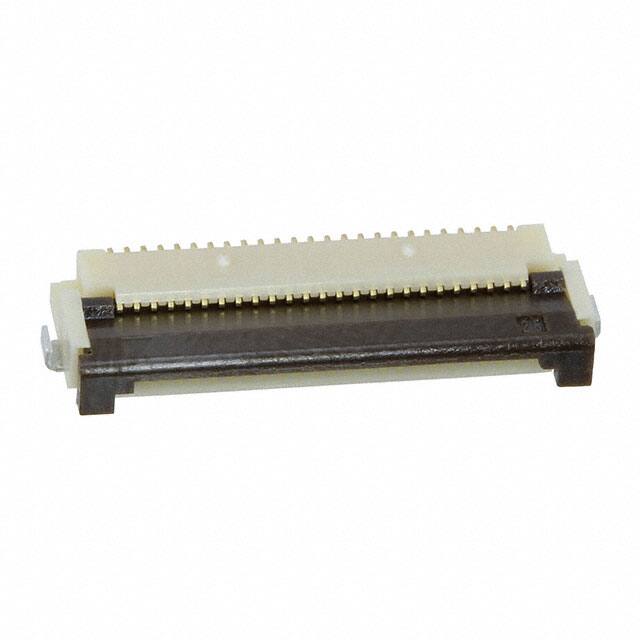

FH12-25S-0.5SH(55)

Teknik Özellikler

Montaj

Surface Mount

Max Voltage Rating Ac

50V

Mixed Contacts

NO

Contact Materials

Phosphor Bronze

Terminal

Solder

Orientation

Right Angle

Flammability Rating

UL94 V-0

Montaj Tipi

Surface Mount, Right Angle

Contact Finish

Gold

Mil Conformance

NO

Actuator Material

Polyphenylene Sulfide (PPS)

Total Number Of Contacts

25

Seri

FH12

Insulation Resistance

500MOhm

Akım Değeri

500mA

Kurşunsuz Kodu

yes

Wirecable Type

Flat Flex

Connector Type

FFC/FPC CONNECTOR

JESD-609 Kodu

e4

Din Conformance

NO

Iec Conformance

NO

Özellikler

Zero Insertion Force (ZIF)

Ul Flammability Code

94V-0

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Flat Flex Type

FFC, FPC

Max Current Rating

400mA

Fabrika Tedarik Süresi

10 Weeks

Depth

5.6mm

Pitch

0.020 0.50mm

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Polyamide (PA), Nylon

Pozisyon Sayısı

25

Contact Resistance

50mOhm

Filter Feature

NO

Ambalaj

Tape & Reel (TR)

Çalışma Sıcaklığı

-40°C~85°C

Height Above Board

0.079 2.00mm

Locking Feature

Flip Lock
