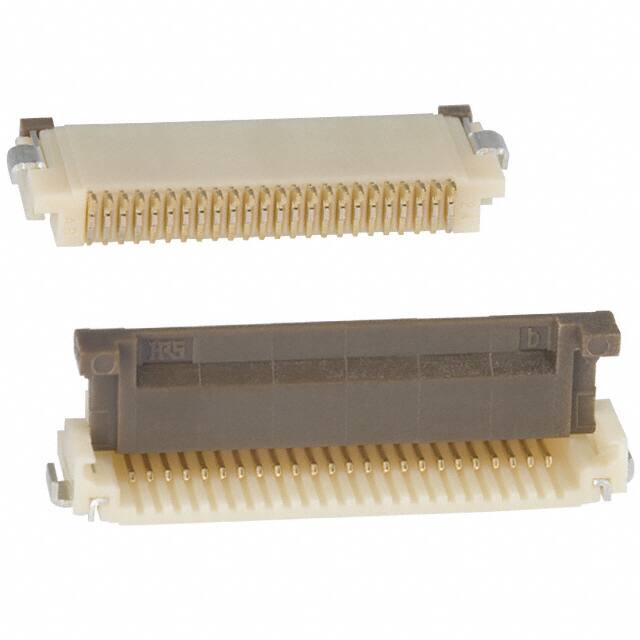

FH12-24S-0.5SH(55)

Teknik Özellikler

Renk

Beige, Brown

Withdrawl Forcemin

ZIF N

Cable End Type

Straight

Uzunluk

16.1mm

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Option

GENERAL PURPOSE

Housing Color

Beige

Body Breadth

0.079 inch

Voltage Rated Ac

50V

Ffc Fcb Thickness

0.30mm

Sıra Sayısı

1

Contact Style

BELLOWED TYPE

Pozisyon Sayısı

24

Contact Resistance

50mOhm

Filter Feature

NO

Gender

Receptacle

Ambalaj

Tape & Reel (TR)

Çalışma Sıcaklığı

-40°C~85°C

Additional Feature

TAPE AND REEL PACKAGING

Height Above Board

0.079 2.00mm

Reach Svhc

No SVHC

Locking Feature

Flip Lock

Actuatorcolor

Brown

Current Rating Amps

0.5A

Mating Cycles

20

Genişlik

16.1mm

Reference Standard

UL, CSA

Reliability

COMMERCIAL

Material

Polyamide

Contact Location

Bottom

Özellikler

Zero Insertion Force (ZIF)

Iec Conformance

NO

Kurşunsuz

Lead Free

Ul Flammability Code

94V-0

RoHS Durumu

RoHS Compliant

Flat Flex Type

FFC, FPC

Fabrika Tedarik Süresi

10 Weeks

Max Current Rating

400mA

Depth

5.6mm
