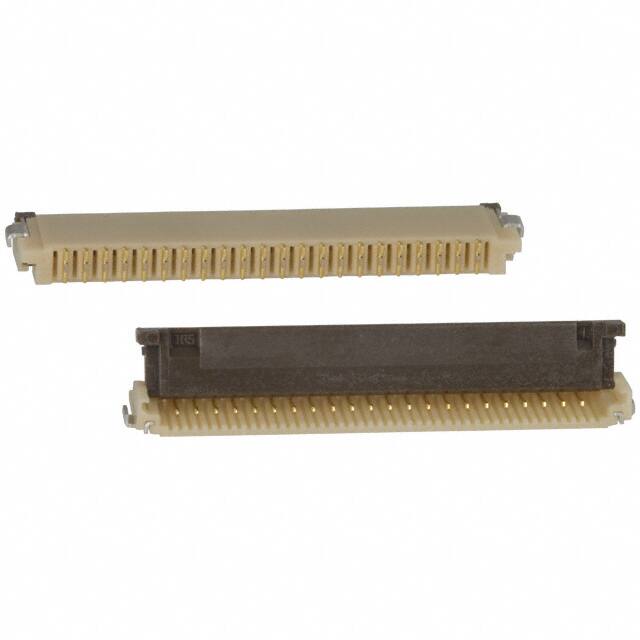

FH12-22S-1SH(55)

Teknik Özellikler

Pitch

0.039 1.00mm

Housing Material

Polyamide (PA), Nylon

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Fabrika Tedarik Süresi

10 Weeks

Flat Flex Type

FFC, FPC

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Yayın Yılı

2007

Iec Conformance

NO

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Ul Flammability Code

94V-0

Kurşunsuz Kodu

yes

Din Conformance

NO

JESD-609 Kodu

e4

Connector Type

FFC/FPC CONNECTOR

Seri

FH12

Mil Conformance

NO

Actuator Material

Polyphenylene Sulfide (PPS)

Total Number Of Contacts

22

Contact Finish

Gold

Montaj Tipi

Surface Mount, Right Angle

Nominal Gerilim

50V

Akım Değeri

500mA

Terminal

Solder

Flammability Rating

UL94 V-0

Lead Pitch

1mm

Orientation

Right Angle

Mixed Contacts

NO

Montaj

Surface Mount

Contact Materials

Phosphor Bronze

Ffc Fcb Thickness

0.30mm

Sıra Sayısı

1

Option

GENERAL PURPOSE

Housing Color

Beige

Material Flammability Rating

UL94 V-0

Cable End Type

Straight

Contact Location

Bottom

Height Above Board

0.079 2.00mm

Reach Svhc

No SVHC
