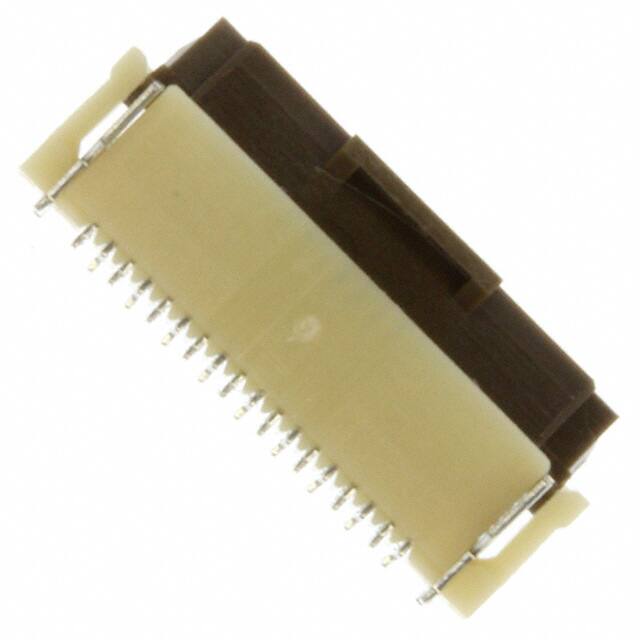

FH12-18S-0.5SH(55)

Teknik Özellikler

Option

GENERAL PURPOSE

Housing Color

Beige

Voltage Rated Ac

50V

Ffc Fcb Thickness

0.30mm

Sıra Sayısı

1

Renk

Beige, Brown

Cable End Type

Straight

Uzunluk

13.1mm

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Height Above Board

0.079 2.00mm

Reach Svhc

No SVHC

Locking Feature

Flip Lock

Current Rating Amps

0.5A

Mating Cycles

20

Actuatorcolor

Brown

Genişlik

13.1mm

Material

Polyamide

Contact Location

Bottom

Pozisyon Sayısı

18

Contact Resistance

50mOhm

Filter Feature

NO

Gender

Receptacle

Ambalaj

Tape & Reel (TR)

Çalışma Sıcaklığı

-40°C~85°C

Depth

5.6mm

Pitch

0.020 0.50mm

Housing Material

Polyamide (PA), Nylon

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Zero Insertion Force (ZIF)

Iec Conformance

NO

Kurşunsuz

Lead Free

Ul Flammability Code

94V-0

RoHS Durumu

RoHS Compliant

Flat Flex Type

FFC, FPC

Max Current Rating

400mA

Fabrika Tedarik Süresi

10 Weeks

Mil Conformance

NO

Actuator Material

Polyphenylene Sulfide (PPS)
