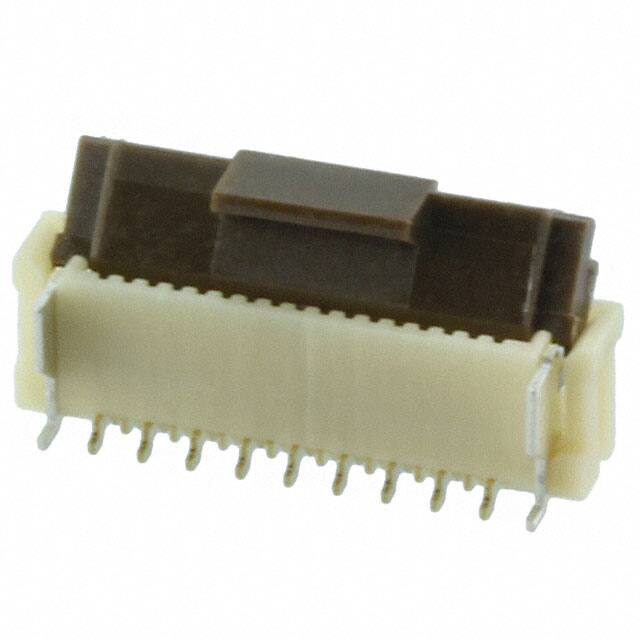

FH12-17S-0.5SVA(54)

Teknik Özellikler

Ul Flammability Code

94V-0

Number Of Conductors

ONE

Contact Gender

FEMALE

RoHS Durumu

RoHS Compliant

REACH Uyumluluk Kodu

unknown

Cable End Type

Straight

Body Length Or Diameter

0.47 inch

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Flat Flex Type

FFC, FPC

Material Flammability Rating

UL94 V-0

Contact Pattern

RECTANGULAR

Body Breadth

0.15 inch

Pcb Contact Row Spacing

0.118 mm

Option

GENERAL PURPOSE

Parça Durumu

Obsolete

Ffc Fcb Thickness

0.30mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Housing Material

Polyamide (PA), Nylon

Pitch

0.020 0.50mm

Contact Materials

Phosphor Bronze

Filter Feature

NO

Pozisyon Sayısı

17

Montaj

Surface Mount

Contact Style

BELLOWED TYPE

Mixed Contacts

NO

Çalışma Sıcaklığı

-40°C~85°C

Flammability Rating

UL94 V-0

Ambalaj

Tape & Reel (TR)

Body Depth

0.142 inch

Terminal

Solder

Akım Değeri

500mA

Nominal Gerilim

50V

Locking Feature

Flip Lock

Current Rating Amps

0.5A

Montaj Tipi

Surface Mount

Contact Finish

Gold

Total Number Of Contacts

17

Height Above Board

0.142 3.60mm

Actuator Material

Polyphenylene Sulfide (PPS)
