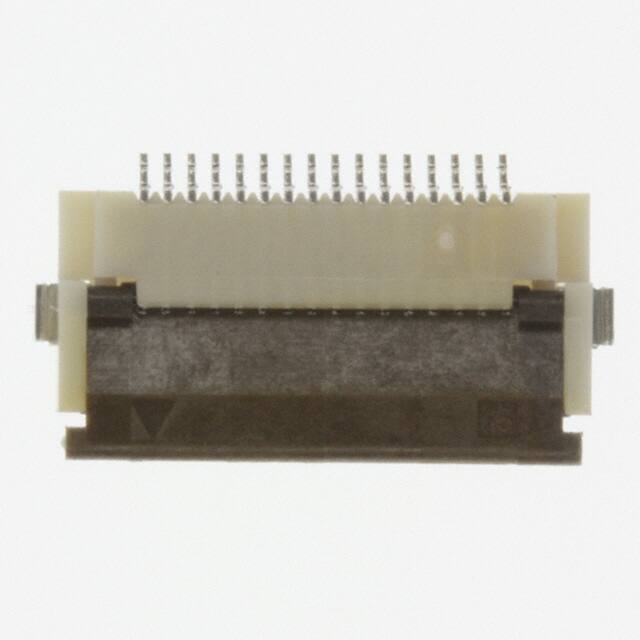

FH12-16S-0.5SVA(54)

Teknik Özellikler

Contact Style

BELLOWED TYPE

Pozisyon Sayısı

16

Filter Feature

NO

Ambalaj

Tape & Reel (TR)

HTS Kodu

8536.69.40.51

Body Depth

0.142 inch

Çalışma Sıcaklığı

-40°C~85°C

Height Above Board

0.142 3.60mm

Current Rating Amps

0.5A

Locking Feature

Flip Lock

Reference Standard

UL

Contact Gender

FEMALE

Cable End Type

Straight

Material Flammability Rating

UL94 V-0

Body Breadth

0.15 inch

Option

GENERAL PURPOSE

Pcb Contact Row Spacing

0.118 mm

Sıra Sayısı

1

Ffc Fcb Thickness

0.30mm

Montaj

Surface Mount

Mixed Contacts

NO

Contact Materials

Phosphor Bronze

Terminal

Solder

Flammability Rating

UL94 V-0

Contact Finish

Gold

Montaj Tipi

Surface Mount

Seri

FH12

Total Number Of Contacts

16

Actuator Material

Polyphenylene Sulfide (PPS)

Nominal Gerilim

50V

Akım Değeri

500mA

Connector Type

FFC/FPC CONNECTOR

Pcb Contact Pattern

STAGGERED

Number Of Pcb Rows

2

Body Length Or Diameter

0.45 inch

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

RoHS Durumu

RoHS Compliant

Ul Flammability Code

94V-0

Number Of Conductors

ONE

REACH Uyumluluk Kodu

unknown
