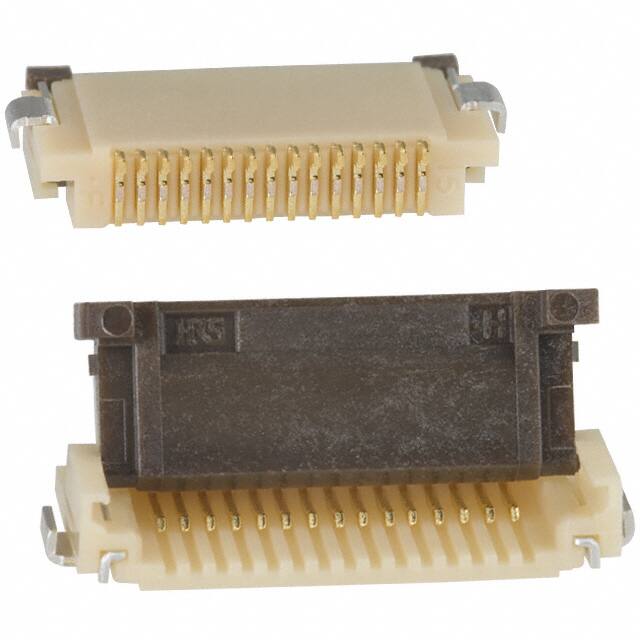

FH12-15S-0.5SH(55)

Teknik Özellikler

Mil Conformance

NO

Actuator Material

Polyphenylene Sulfide (PPS)

Total Number Of Contacts

15

Seri

FH12

Montaj Tipi

Surface Mount, Right Angle

Contact Finish

Gold

Insulation Resistance

500000000Ohm

Akım Değeri

500mA

Kurşunsuz Kodu

yes

JESD-609 Kodu

e4

Number Of Pcb Rows

1

Din Conformance

NO

Connector Type

FFC/FPC CONNECTOR

Pcb Contact Pattern

RECTANGULAR

Mixed Contacts

NO

Max Voltage Rating Ac

50V

Montaj

Surface Mount

Contact Materials

Phosphor Bronze

Terminal

Solder

Flammability Rating

UL94 V-0

Lead Pitch

500μm

Orientation

Right Angle

Depth

5.6mm

Yükseklik

2mm

Contact Pattern

RECTANGULAR

Pitch

0.020 0.50mm

Housing Material

Polyamide (PA), Nylon

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Zero Insertion Force (ZIF)

Iec Conformance

NO

Kurşunsuz

Lead Free

Ul Flammability Code

94V-0

RoHS Durumu

RoHS Compliant

Flat Flex Type

FFC, FPC

Max Current Rating

400mA

Fabrika Tedarik Süresi

10 Weeks

Height Above Board

0.079 2.00mm

Reach Svhc

Unknown

Locking Feature

Flip Lock
