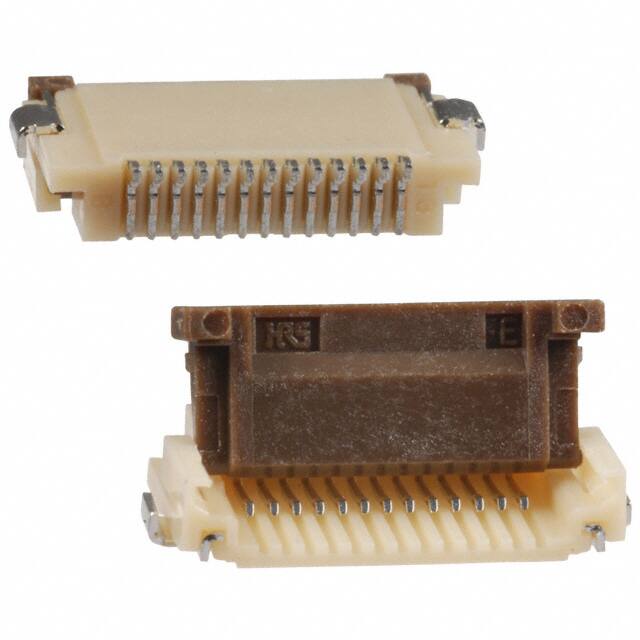

FH12-13S-0.5SH(55)

Teknik Özellikler

Renk

Beige, Brown

Cable End Type

Straight

Material Flammability Rating

UL94 V-0

Housing Color

Beige

Option

GENERAL PURPOSE

Voltage Rated Ac

50V

Ffc Fcb Thickness

0.30mm

Sıra Sayısı

1

Pozisyon Sayısı

13

Filter Feature

NO

Contact Resistance

50mOhm

Ambalaj

Tape & Reel (TR)

Gender

Female

Çalışma Sıcaklığı

-40°C~85°C

Reach Svhc

No SVHC

Height Above Board

0.079 2.00mm

Mating Cycles

20

Current Rating Amps

0.5A

Actuatorcolor

Brown

Locking Feature

Flip Lock

Genişlik

10.6mm

Contact Location

Bottom

Material

Polyamide

Iec Conformance

NO

Özellikler

Zero Insertion Force (ZIF)

RoHS Durumu

RoHS Compliant

Ul Flammability Code

94V-0

Kurşunsuz

Lead Free

REACH Uyumluluk Kodu

unknown

Fabrika Tedarik Süresi

10 Weeks

Flat Flex Type

FFC, FPC

Pitch

0.020 0.50mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Housing Material

Polyamide (PA), Nylon

Montaj

Horizontal, Surface Mount

Mixed Contacts

NO

Contact Materials

Phosphor Bronze

Terminal

Solder

Orientation

Right Angle
