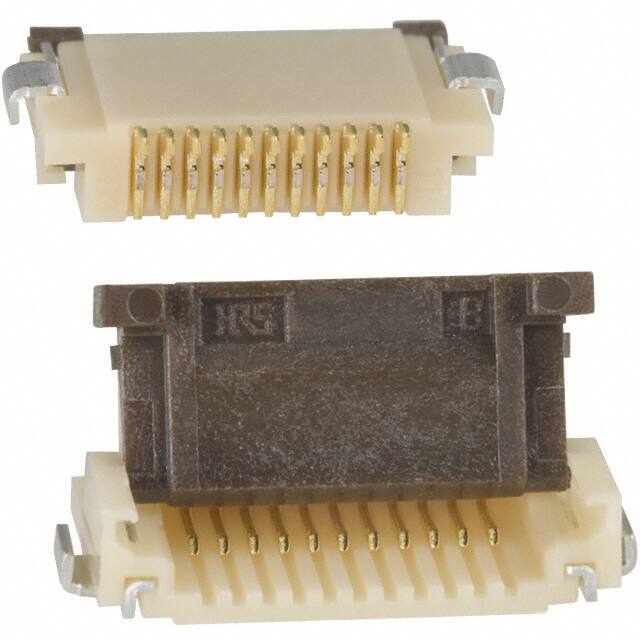

FH12-11S-0.5SH(1)(98)

Teknik Özellikler

Housing Color

Beige

Parça Durumu

Active

Ffc Fcb Thickness

0.30mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Polyamide (PA), Nylon

Pitch

0.020 0.50mm

RoHS Durumu

RoHS Compliant

REACH Uyumluluk Kodu

unknown

Cable End Type

Straight

Özellikler

Zero Insertion Force (ZIF)

Flat Flex Type

FFC, FPC

Fabrika Tedarik Süresi

10 Weeks

Material Flammability Rating

UL94 V-0

Insulation Resistance

500MOhm

Akım Değeri

500mA

Nominal Gerilim

50V

Locking Feature

Flip Lock

Actuatorcolor

Brown

Mating Cycles

20

Current Rating Amps

0.5A

Montaj Tipi

Surface Mount, Right Angle

Contact Finish

Gold

Actuator Material

Polyphenylene Sulfide (PPS)

Height Above Board

0.079 2.00mm

Seri

FH12

Connector Type

FFC/FPC CONNECTOR

Wirecable Type

Flat Flex

Contact Materials

Phosphor Bronze

Pozisyon Sayısı

11

Montaj

Surface Mount

Çalışma Sıcaklığı

-40°C~85°C

Flammability Rating

UL94 V-0

Ambalaj

Tape & Reel (TR)

Terminal

Solder
