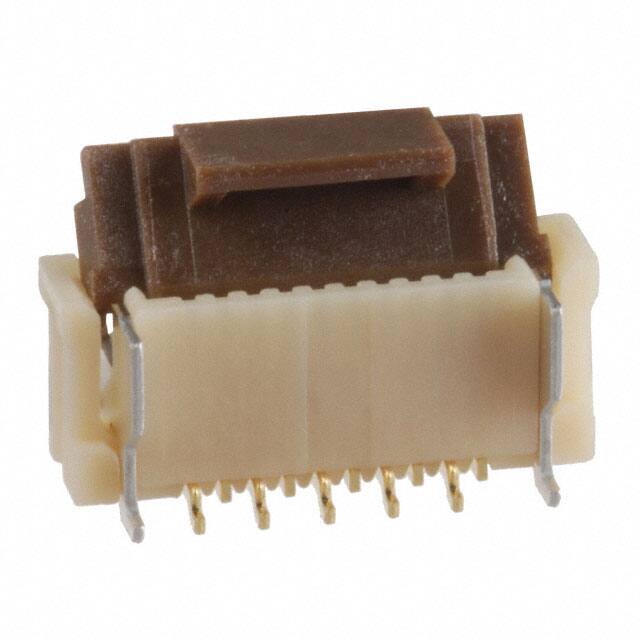

FH12-10S-0.5SVA(54)

Teknik Özellikler

Pitch

0.020 0.50mm

Voltage Rated Ac

50V

Parça Durumu

Active

Ffc Fcb Thickness

0.30mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Housing Material

Polyamide (PA), Nylon

Option

GENERAL PURPOSE

Contact Pattern

RECTANGULAR

Material Flammability Rating

UL94 V-0

Flat Flex Type

FFC, FPC

Fabrika Tedarik Süresi

10 Weeks

ECCN Kodu

EAR99

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Number Of Conductors

ONE

Ul Flammability Code

94V-0

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Cable End Type

Straight

Reference Standard

UL

Genişlik

8.4mm

Pcb Contact Pattern

STAGGERED

Connector Type

FFC/FPC CONNECTOR

Number Of Pcb Rows

2

Material

Polyamide

Montaj Tipi

Surface Mount

Reach Svhc

Unknown

Contact Finish

Gold

Actuator Material

Polyphenylene Sulfide (PPS)

Height Above Board

0.142 3.60mm

Total Number Of Contacts

10

Seri

FH12

Insulation Resistance

500MOhm

Akım Değeri

500mA

Locking Feature

Flip Lock

Current Rating Amps

0.5A

Ambalaj

Tape & Reel (TR)

Gender

Receptacle

Terminal

Solder

Çalışma Sıcaklığı

-40°C~85°C
