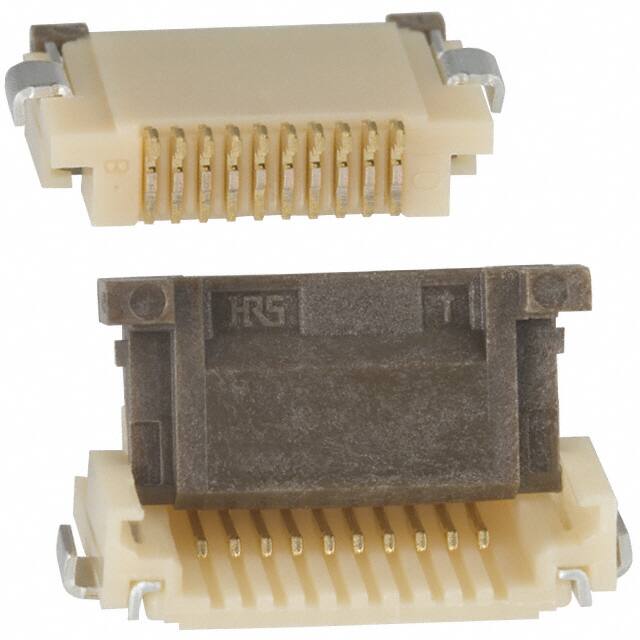

FH12-10S-0.5SH

Teknik Özellikler

Contact Gender

FEMALE

Cable End Type

Straight

Withdrawl Forcemin

ZIF N

Material Flammability Rating

UL94 V-0

Housing Color

Beige

Body Breadth

0.079 inch

Option

GENERAL PURPOSE

Ffc Fcb Thickness

0.30mm

Sıra Sayısı

1

Contact Style

BELLOWED TYPE

Pozisyon Sayısı

10

Contact Resistance

50mOhm

Filter Feature

NO

Ambalaj

Tape & Reel (TR)

Body Depth

0.22 inch

HTS Kodu

8536.69.40.51

Çalışma Sıcaklığı

-40°C~85°C

Additional Feature

BOTTOM CONTACT

Height Above Board

0.079 2.00mm

Mating Information

NO

Locking Feature

Flip Lock

Actuatorcolor

Brown

Current Rating Amps

0.5A

Mating Cycles

20

Reliability

COMMERCIAL

Reference Standard

UL

Contact Plating

Lead, Tin

Body Length Or Diameter

0.358 inch

Iec Conformance

NO

Özellikler

Zero Insertion Force (ZIF)

Ul Flammability Code

94V-0

RoHS Durumu

Non-RoHS Compliant

Kurşunsuz

Contains Lead

REACH Uyumluluk Kodu

unknown

Flat Flex Type

FFC, FPC

ECCN Kodu

EAR99

Insertion Forcemax

ZIF N

Contact Pattern

RECTANGULAR

Pitch

0.020 0.50mm

Parça Durumu

Obsolete
