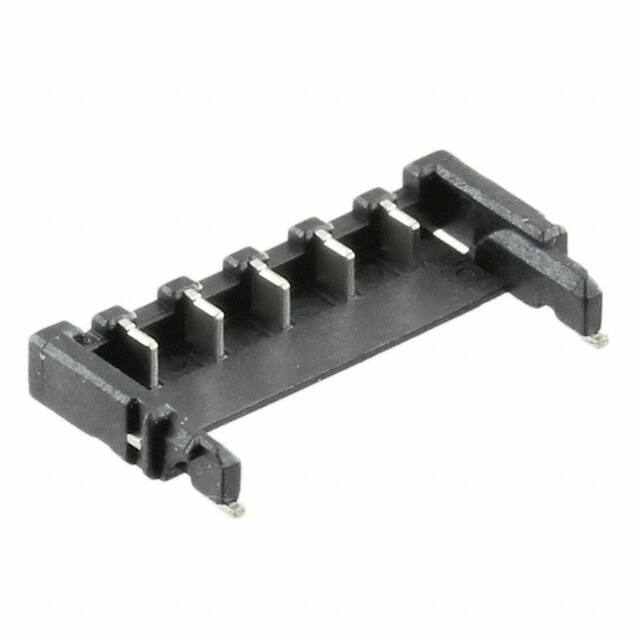

DF65-5P-1.7V(21)

Teknik Özellikler

Number Of Positions Loaded

All

Montaj

Surface Mount

Shrouding

Shrouded - 3 Wall

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Materials

Brass

Terminal

Solder

Insulation Color

Black

Ambalaj

Tape & Reel (TR)

Montaj Tipi

Surface Mount

Sıra Sayısı

1

Pozisyon Sayısı

5

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Reference Standard

UL

Style

Board to Cable/Wire

Mixed Contacts

YES

Parça Durumu

Active

Seri

DF65

Fastening Type

Latch Lock

Özellikler

Solder Retention

Contact Finish Mating

Tin

Orientation

Straight

Durability

30 Cycles

Contact Type

Male Blade

Nominal Gerilim

50V

Pitch Mating

0.067 1.70mm

Insulation Height

0.065 1.65mm

Contact Shape

Rectangular

Akım Değeri

4A

Reliability

COMMERCIAL

Çalışma Sıcaklığı

-40°C~105°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE

ECCN Kodu

EAR99

Total Number Of Contacts

5

Connector Type

Header

Fabrika Tedarik Süresi

10 Weeks

Reach Svhc

Unknown

Gender

Male
