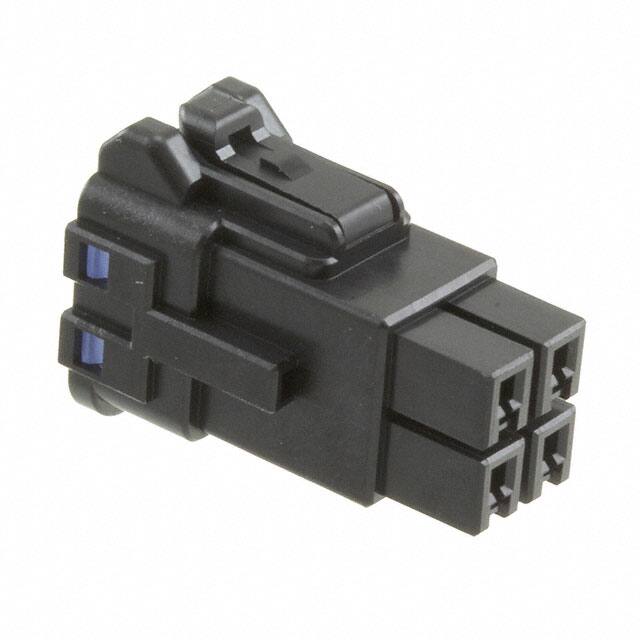

DF63W-4S-3.96C

Teknik Özellikler

Total Number Of Contacts

4

Ambalaj

Bulk

Durability

30 Cycles

Operating Temperature Max

105°C

Connector Type

Receptacle

Sıra Sayısı

2

Contact Type

Female Socket

Insulation Resistance

1000000000Ohm

RoHS Durumu

RoHS Compliant

Montaj

Free Hanging

Number Of Conductors

ONE

Pitch

0.156 3.96mm

Pozisyon Sayısı

4

Özellikler

Waterproof (Mated)

Contact Termination

Crimp

Fabrika Tedarik Süresi

10 Weeks

REACH Uyumluluk Kodu

unknown

Seri

EnerBee™ DF63W

Reference Standard

UL

Note

Contacts Not Included

Contact Resistance

10mOhm

Contact Finish Mating

SN

Parça Durumu

Active

Fastening Type

Latch Lock

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Free Hanging (In-Line)

Contact Materials

COPPER ALLOY

Reliability

COMMERCIAL

Mixed Contacts

YES

Insulation Materials

POLYBUTYLENE TEREPHTHALATE

Renk

Black

Row Spacing

0.173 (4.40mm)

Dielectric Withstanding Voltage

1500VAC V
