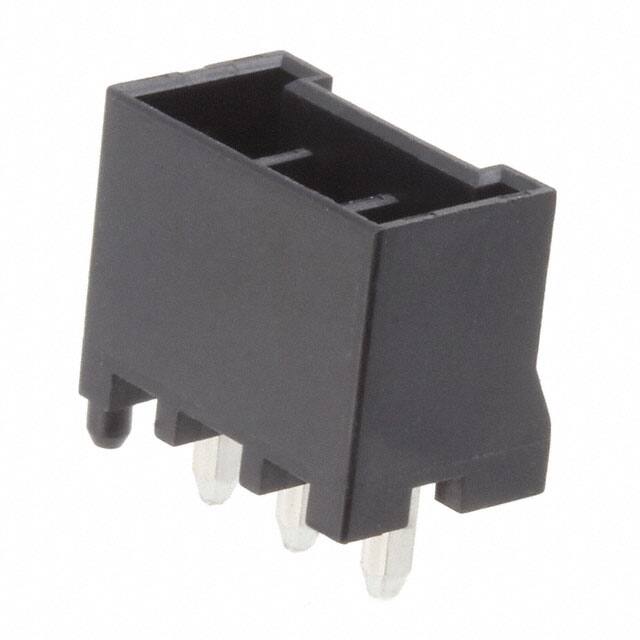

DF63-3P-3.96DSA

Teknik Özellikler

Terminal

Solder

Reach Svhc

Unknown

Pitch Mating

0.156 3.96mm

Body Length Or Diameter

0.497 inch

Shrouding

Shrouded - 4 Wall

Number Of Positions Loaded

All

Montaj Tipi

Through Hole

Contact Materials

Copper Alloy

Reliability

COMMERCIAL

Gender

Male

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Mixed Contacts

YES

Insulation Color

Black

Nominal Gerilim

630V

Parça Durumu

Obsolete

Contact Finish Mating

Tin

Fastening Type

Latch Holder

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-55°C~105°C

Reference Standard

UL

Seri

EnerBee™ DF63

Yükseklik

10mm

Contact Length Post

0.150 3.81mm

Özellikler

Board Lock

Contact Shape

Square

Pozisyon Sayısı

3

RoHS Durumu

RoHS Compliant

Stack Height Mating

18.8mm

Number Of Conductors

ONE

Montaj

Through Hole

Style

Board to Cable/Wire

ECCN Kodu

EAR99

Ambalaj

Bulk

Insulation Height

0.683 17.35mm

Connector Type

Header

Sıra Sayısı

1

Contact Type

Male Pin
