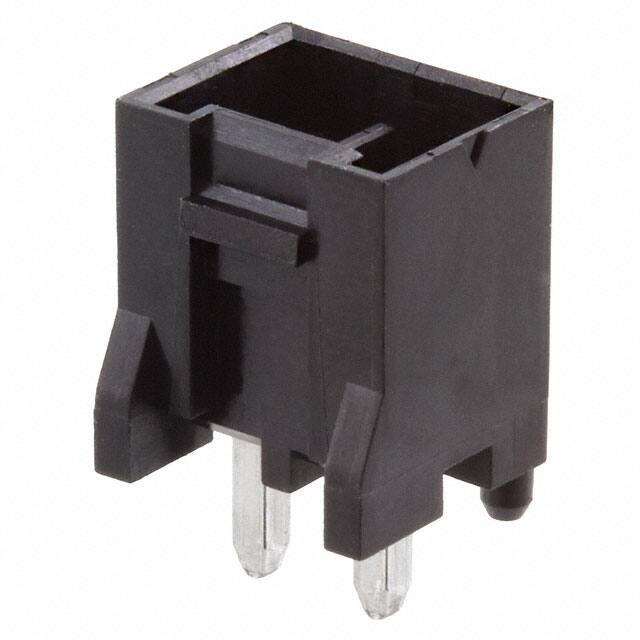

DF63-2P-3.96DSA

Teknik Özellikler

Durability

30 Cycles

Connector Type

Header

Sıra Sayısı

1

Contact Type

Male Pin

Insulation Height

0.683 17.35mm

Ambalaj

Bulk

Montaj

Through Hole

Number Of Conductors

ONE

ECCN Kodu

EAR99

Style

Board to Cable/Wire

Akım Değeri

14A

Stack Height Mating

18.8mm

RoHS Durumu

RoHS Compliant

Pozisyon Sayısı

2

Contact Shape

Square

Özellikler

Board Lock

HTS Kodu

8536.69.40.30

Contact Length Post

0.150 3.81mm

Body Depth

0.394 inch

Seri

EnerBee™ DF63

Reference Standard

UL

Yükseklik

10.3mm

Çalışma Sıcaklığı

-55°C~105°C

Shell Material

GLASS FILLED POLYBUTYLENE TEREPHTHALATE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Contact Finish Mating

Tin

Parça Durumu

Obsolete

Nominal Gerilim

630V

Fastening Type

Latch Holder

Mixed Contacts

YES

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Insulation Color

Black

Contact Materials

Copper Alloy

Montaj Tipi

Through Hole

Number Of Positions Loaded

All

Gender

Male

Reliability

COMMERCIAL

Shrouding

Shrouded - 4 Wall

Pitch Mating

0.156 3.96mm
