Adet bazlı fiyat
- 1+ adet$0.58
- 10+ adet$0.55
- 100+ adet$0.52
- 500+ adet$0.49
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

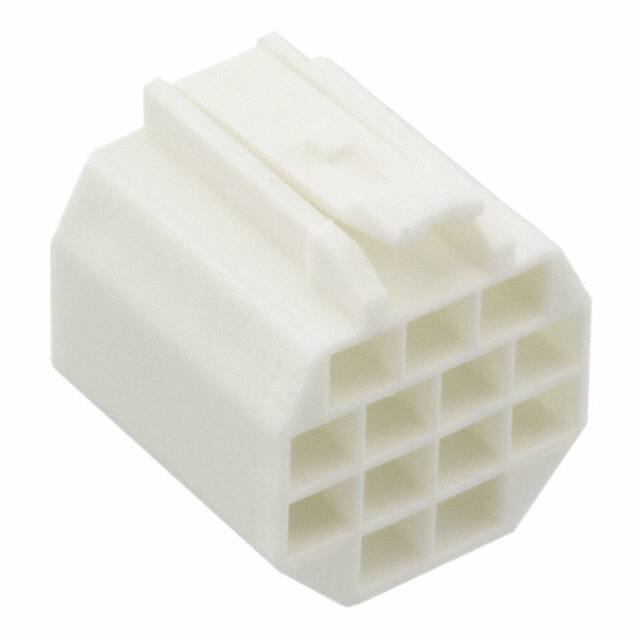

Teknik Özellikler
- Montaj Tipi
- Free Hanging (In-Line)
- Kurşunsuz
- Lead Free
- Gender
- Receptacle
- Reliability
- COMMERCIAL
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Parça Durumu
- Active
- Fastening Type
- Latch Lock
- Rated Current Signal
- 3A
- Dielectric Withstanding Voltage
- 650VAC V
- Operating Temperature Min
- -35°C
- Reach Svhc
- No SVHC
- Row Spacing
- 0.079 (2.00mm)
- Housing Material
- PBT
- Renk
- White
- Orientation
- Straight
- Montaj
- Free Hanging, Panel
- Depth
- 11.08mm
- ECCN Kodu
- EAR99
- Polarization Key
- POLARIZED HOUSING
- Insulation Resistance
- 1000000000Ohm
- RoHS Durumu
- RoHS Compliant
- Connector Type
- Socket
- Durability
- 30 Cycles
- Operating Temperature Max
- 105°C
- Sıra Sayısı
- 4
- Contact Type
- Female Socket
- Genişlik
- 9.3mm
- Total Number Of Contacts
- 13
- Ambalaj
- Bulk
- Seri
- DF62
- Reference Standard
- UL
- Note
- Contacts Not Included
- Contact Resistance
- 30mOhm
- Fabrika Tedarik Süresi
- 10 Weeks
- REACH Uyumluluk Kodu
- unknown
- Pitch
- 0.087 2.20mm
- Pozisyon Sayısı
- 13
- Contact Termination
- Crimp
- Uzunluk
- 9.55mm
