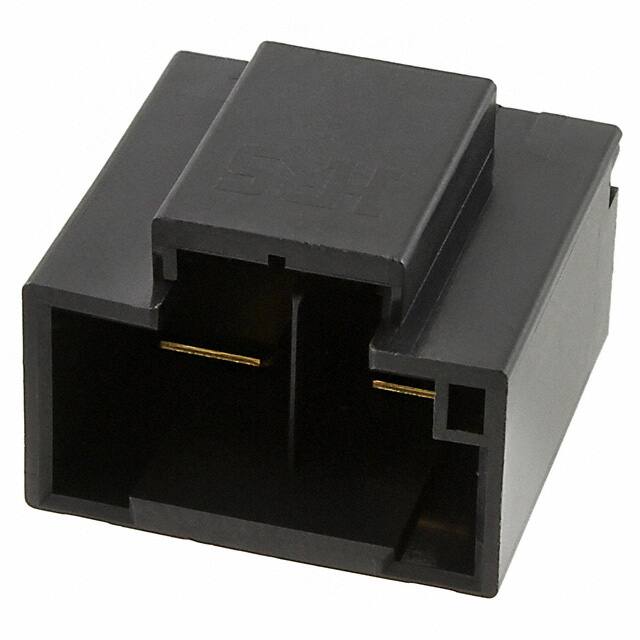

DF60-2P-10.16DS(26)

Teknik Özellikler

Seri

EnerBee™ DF60

Contact Finish Thickness Mating

8.00μin 0.203μm

Çalışma Sıcaklığı

-55°C~105°C

Contact Gender

Male

Fabrika Tedarik Süresi

12 Weeks

Maks. Çalışma Sıcaklığı

105°C

Contact Plating

Gold

Contact Shape

Rectangular

Pitch

10.16mm

Pozisyon Sayısı

2

Current Rating Amps

Varies by WireGAuge

Özellikler

Board Guide

Contact Length Post

0.150 3.81mm

Style

Board to Cable/Wire

Orientation

Right Angle

Montaj

Through Hole

RoHS Durumu

RoHS Compliant

Akım Değeri

40A

Sıra Sayısı

1

Contact Type

Male Blade

Connector Type

Header

Insulation Height

0.683 17.35mm

Ambalaj

Tray

Pitch Mating

0.400 10.16mm

Reach Svhc

Unknown

Terminal

Solder

Number Of Contacts

2

Housing Material

PBT

Shrouding

Shrouded - 4 Wall

Min. Çalışma Sıcaklığı

-55°C

Renk

Black

Insulation Color

Black

Wire Gauge Max

8 AWG

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Gender

Male

Montaj Tipi

Through Hole, Right Angle

Contact Materials

Copper Alloy

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0
