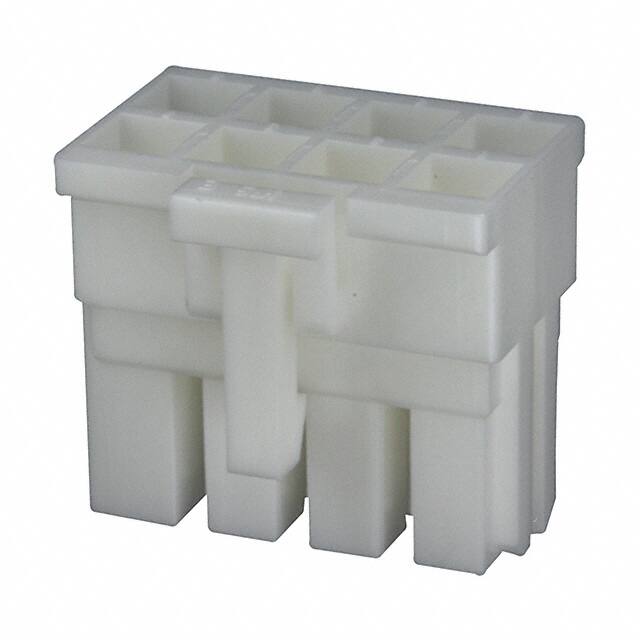

DF5A-8DS-5C

Teknik Özellikler

Reference Standard

UL

Seri

DF5

Contact Resistance

30mOhm

Note

Contacts Not Included

Fabrika Tedarik Süresi

10 Weeks

REACH Uyumluluk Kodu

unknown

Din Conformance

NO

Contact Termination

Crimp

Pozisyon Sayısı

8

Pitch

0.197 5.00mm

Montaj

Free Hanging

Iec Conformance

NO

RoHS Durumu

RoHS Compliant

Insulation Resistance

1000000000Ohm

JESD-609 Kodu

e3

Connector Type

Receptacle

Durability

30 Cycles

Sıra Sayısı

2

Contact Type

Female Socket

Total Number Of Contacts

8

Ambalaj

Bulk

Dielectric Withstanding Voltage

1500VAC V

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Operating Temperature Min

-35°C

Yayın Yılı

2005

Housing Material

Polyamide

Filter Feature

NO

Row Spacing

0.197 (5.00mm)

Renk

White

Option

GENERAL PURPOSE

Mixed Contacts

NO

Kurşunsuz

Lead Free

Contact Materials

COPPER ALLOY

Montaj Tipi

Free Hanging (In-Line)

Reliability

COMMERCIAL

Mil Conformance

NO

Ul Flammability Code

94V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Kurşunsuz Kodu

yes
