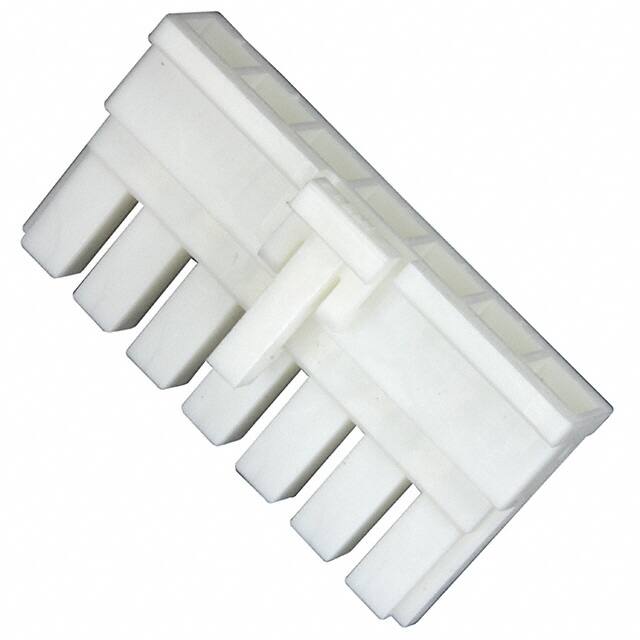

DF5A-7S-5C

Teknik Özellikler

Yayın Yılı

2005

Operating Temperature Min

-35°C

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Option

GENERAL PURPOSE

Renk

White

Housing Material

Polyamide

Filter Feature

NO

Reliability

COMMERCIAL

Montaj Tipi

Free Hanging (In-Line)

Kurşunsuz

Lead Free

Contact Materials

COPPER ALLOY

Mixed Contacts

NO

Rated Current Signal

8A

Fastening Type

Latch Holder

Parça Durumu

Active

Contact Finish Mating

TIN

Kurşunsuz Kodu

yes

Mil Conformance

NO

Ul Flammability Code

94V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

REACH Uyumluluk Kodu

unknown

Din Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Contact Resistance

30mOhm

Note

Contacts Not Included

Reference Standard

UL

Seri

DF5

Contact Termination

Crimp

Pitch

0.197 5.00mm

Pozisyon Sayısı

7

RoHS Durumu

RoHS Compliant

Iec Conformance

NO

Montaj

Free Hanging

Insertion Forcemax

4.8928 N

Ambalaj

Bulk

Total Number Of Contacts

7

Contact Type

Female Socket

Sıra Sayısı

1

Durability

30 Cycles

Operating Temperature Max

85°C
