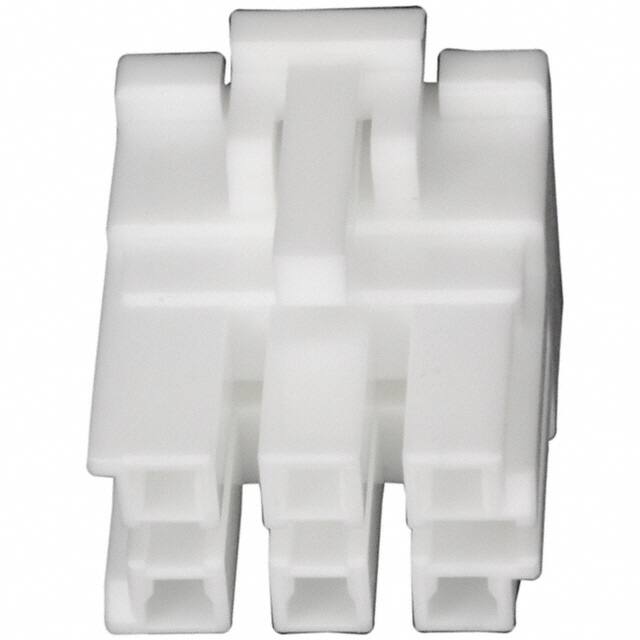

DF5A-6DS-5C

Teknik Özellikler

Yükseklik

15.5mm

Contact Resistance

30mOhm

Note

Contacts Not Included

Reference Standard

UL

Seri

DF5

REACH Uyumluluk Kodu

unknown

Din Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Uzunluk

15.5mm

Contact Termination

Crimp

Pozisyon Sayısı

6

Pitch

0.197 5.00mm

Montaj

Free Hanging

Iec Conformance

NO

Akım Değeri

8A

RoHS Durumu

RoHS Compliant

Insulation Resistance

1000000000Ohm

Contact Type

Female Socket

Sıra Sayısı

2

JESD-609 Kodu

e3

Connector Type

Receptacle

Operating Temperature Max

85°C

Durability

30 Cycles

Ambalaj

Bulk

Total Number Of Contacts

6

Voltage Rated Ac

500V

Operating Temperature Min

-35°C

Dielectric Withstanding Voltage

1500VAC V

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Yayın Yılı

2005

Housing Material

Polyamide

Filter Feature

NO

Row Spacing

0.197 (5.00mm)

Option

GENERAL PURPOSE

Renk

White

Mixed Contacts

NO

Reliability

COMMERCIAL

Montaj Tipi

Free Hanging (In-Line)

Kurşunsuz

Lead Free

Contact Materials

COPPER ALLOY
