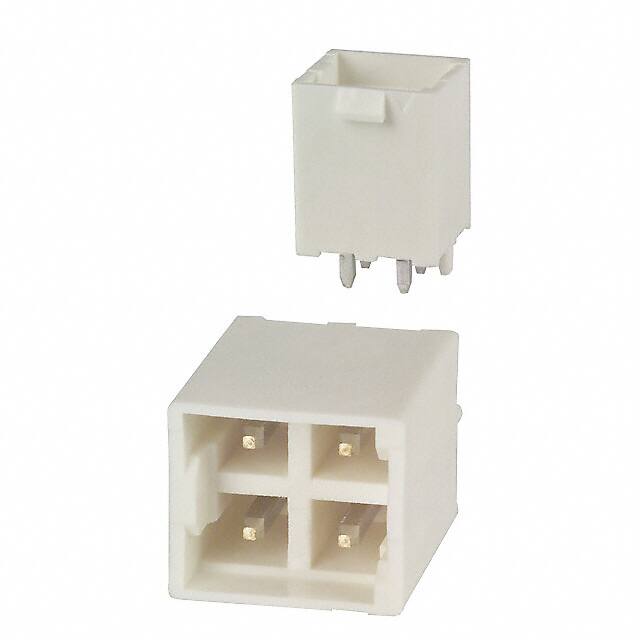

DF5A-4DP-5DSA(35)

Teknik Özellikler

Ambalaj

Bulk

Insulation Height

0.591 15.00mm

Contact Type

Male Pin

Sıra Sayısı

2

Connector Type

Header

Durability

30 Cycles

Stack Height Mating

22.5mm

RoHS Durumu

RoHS Compliant

Insulation Resistance

1000000000Ohm

Polarization Key

POLARIZED HOUSING

Style

Board to Board or Cable

Number Of Conductors

ONE

Montaj

Through Hole

Contact Length Post

0.138 3.50mm

Özellikler

Board Guide

Pozisyon Sayısı

4

Contact Shape

Square

REACH Uyumluluk Kodu

unknown

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

10 Weeks

Çalışma Sıcaklığı

-35°C~85°C

Contact Resistance

30mOhm

Contact Finish Thickness Mating

39.4μin 1.00μm

Reference Standard

UL

Seri

DF5

Row Spacing Mating

0.197 (5.00mm)

Rated Current Signal

8A

Fastening Type

Locking Ramp

Parça Durumu

Active

Pcb Contact Row Spacing

5.0038 mm

Contact Finish Mating

Tin

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Adımı

5.0038mm

Reliability

COMMERCIAL

Number Of Positions Loaded

All

Montaj Tipi

Through Hole

Contact Materials

Brass

Kurşunsuz

Lead Free

Mating Contact Pitch

0.197 inch
