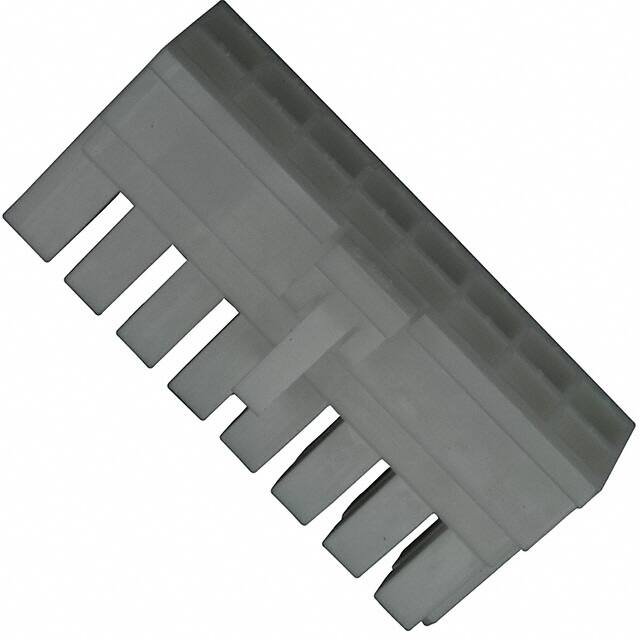

DF5A-16DS-5C

Teknik Özellikler

Yükseklik

15.5mm

Note

Contacts Not Included

Reference Standard

UL

Seri

DF5

HTS Kodu

8536.69.40.40

Uzunluk

40.5mm

ECCN Kodu

EAR99

Iec Conformance

NO

Voltage Rated Ac

500V

Total Number Of Contacts

16

Operating Temperature Max

85°C

Durability

30 Cycles

JESD-609 Kodu

e3

Operating Temperature Min

-35°C

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Option

GENERAL PURPOSE

Row Spacing

0.197 (5.00mm)

Housing Material

Polyamide

Montaj Tipi

Free Hanging (In-Line)

Mixed Contacts

NO

Contact Finish Mating

TIN

Ul Flammability Code

94V-0

Mil Conformance

NO

REACH Uyumluluk Kodu

unknown

Din Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Contact Resistance

30mOhm

Contact Termination

Crimp

Pitch

0.197 5.00mm

Pozisyon Sayısı

16

Akım Değeri

7A

RoHS Durumu

RoHS Compliant

Insulation Resistance

1000000000Ohm

Montaj

Free Hanging

Ambalaj

Bulk

Contact Type

Female Socket

Sıra Sayısı

2

Connector Type

Receptacle

Yayın Yılı

2005

Dielectric Withstanding Voltage

1500VAC V
