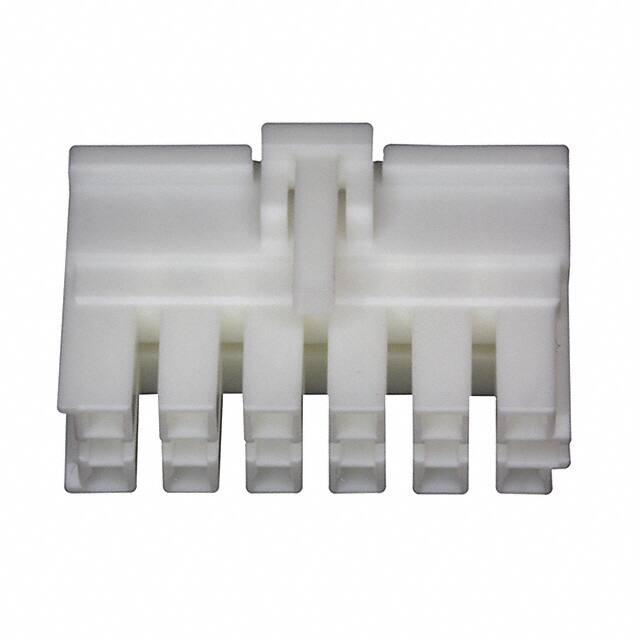

DF5A-12DS-5C

Teknik Özellikler

Reference Standard

UL

Seri

DF5

Yükseklik

15.5mm

Note

Contacts Not Included

Uzunluk

30.5mm

HTS Kodu

8536.69.40.40

Iec Conformance

NO

ECCN Kodu

EAR99

Operating Temperature Max

85°C

Durability

30 Cycles

JESD-609 Kodu

e3

Voltage Rated Ac

500V

Total Number Of Contacts

12

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Operating Temperature Min

-35°C

Row Spacing

0.197 (5.00mm)

Housing Material

Polyamide

Option

GENERAL PURPOSE

Mixed Contacts

NO

Montaj Tipi

Free Hanging (In-Line)

Mil Conformance

NO

Ul Flammability Code

94V-0

Contact Finish Mating

TIN

Contact Resistance

30mOhm

Fabrika Tedarik Süresi

10 Weeks

REACH Uyumluluk Kodu

unknown

Din Conformance

NO

Contact Termination

Crimp

Pozisyon Sayısı

12

Pitch

0.197 5.00mm

Montaj

Free Hanging

RoHS Durumu

RoHS Compliant

Akım Değeri

7A

Insulation Resistance

1000000000Ohm

Connector Type

Receptacle

Contact Type

Female Socket

Sıra Sayısı

2

Ambalaj

Bulk

Dielectric Withstanding Voltage

1500VAC V

Yayın Yılı

2005
