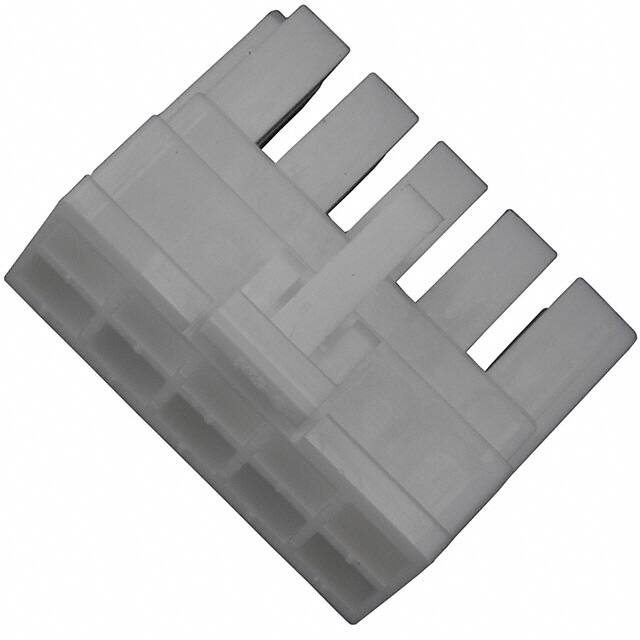

DF5A-10DS-5C

Teknik Özellikler

Option

GENERAL PURPOSE

Renk

White

Row Spacing

0.197 (5.00mm)

Filter Feature

NO

Housing Material

Polyamide

Yayın Yılı

2005

Operating Temperature Min

-35°C

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Dielectric Withstanding Voltage

1500VAC V

Rated Current Signal

7A

Fastening Type

Latch Lock

Parça Durumu

Active

Contact Finish Mating

TIN

Kurşunsuz Kodu

yes

Mil Conformance

NO

Ul Flammability Code

94V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Montaj Tipi

Free Hanging (In-Line)

Contact Materials

COPPER ALLOY

Kurşunsuz

Lead Free

Mixed Contacts

NO

Contact Termination

Crimp

Pitch

0.197 5.00mm

Pozisyon Sayısı

10

REACH Uyumluluk Kodu

unknown

Din Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Contact Resistance

30mOhm

Note

Contacts Not Included

Reference Standard

UL

Seri

DF5

Ambalaj

Bulk

Total Number Of Contacts

10

Contact Type

Female Socket

Sıra Sayısı

2

Durability

30 Cycles

Operating Temperature Max

85°C

Connector Type

Receptacle

JESD-609 Kodu

e3
